Theory of Operation
Transfer Belt and Fuser
Transfer Belt
The Transfer Belt consists of the transfer belt and ADC Sensor.
• transfer belt
The Belt feeds the paper toward the direction of the Fuser.
• ADC Sensor
The ADC Sensor detects the toner patches on the Belt and converts them to
voltage value. The voltage value is used to control the density of toner.

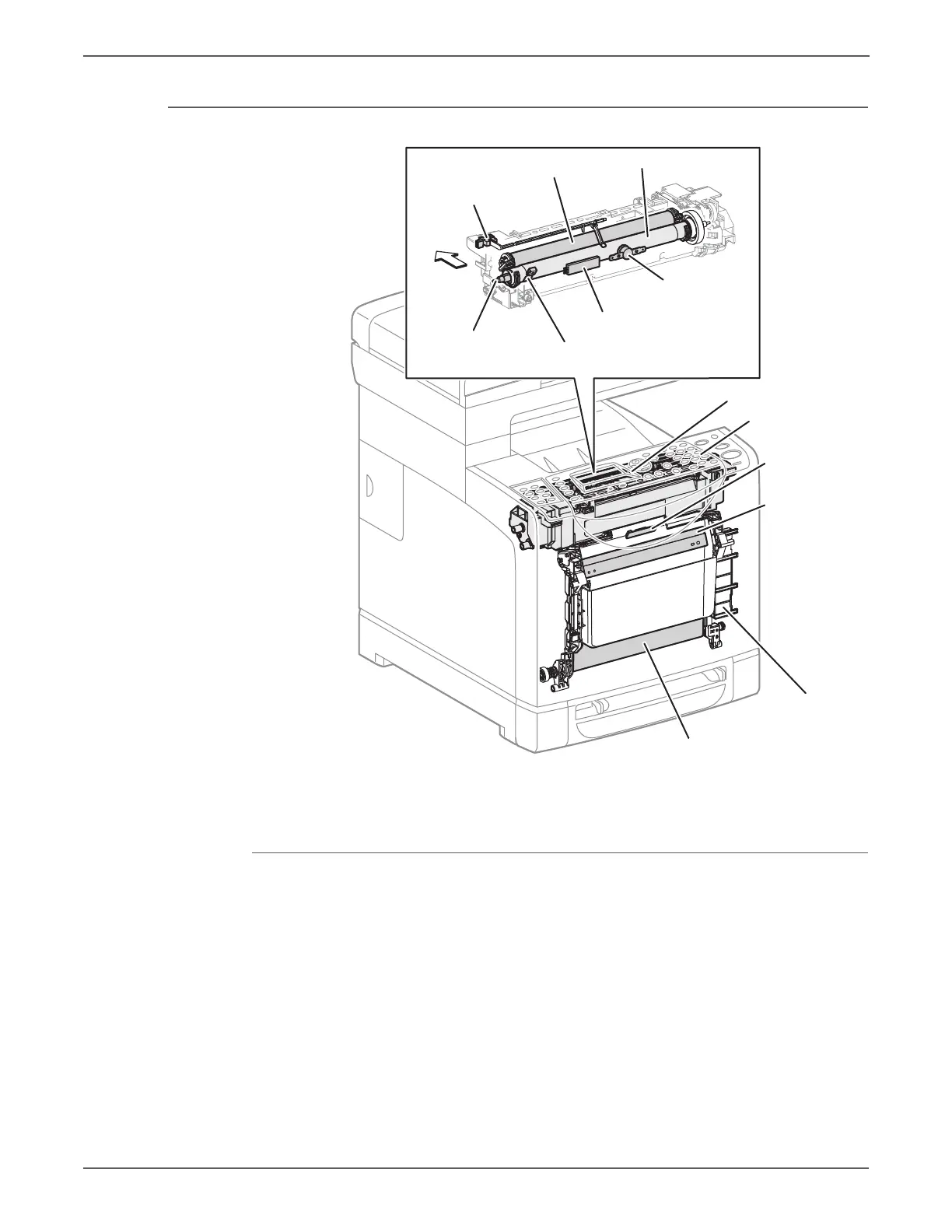

Exit Roller
Transfer Belt
Belt
ADC Sensor
Blade Assembly
Fuser
s6128-024
Heat Roller
Heater Lamp
Thermostat
STS Temperature Sensor
NCS Temperature Sensor
Pressure Belt
Rear View
Exit Sensor
Front
