Xerox Phaser 6128MFP - Wiring Diagrams; Notations Used in the Wiring Diagrams

10-10 Phaser 6128MFP Service Manual
Wiring
Wiring Diagrams
Notations Used in the Wiring Diagrams

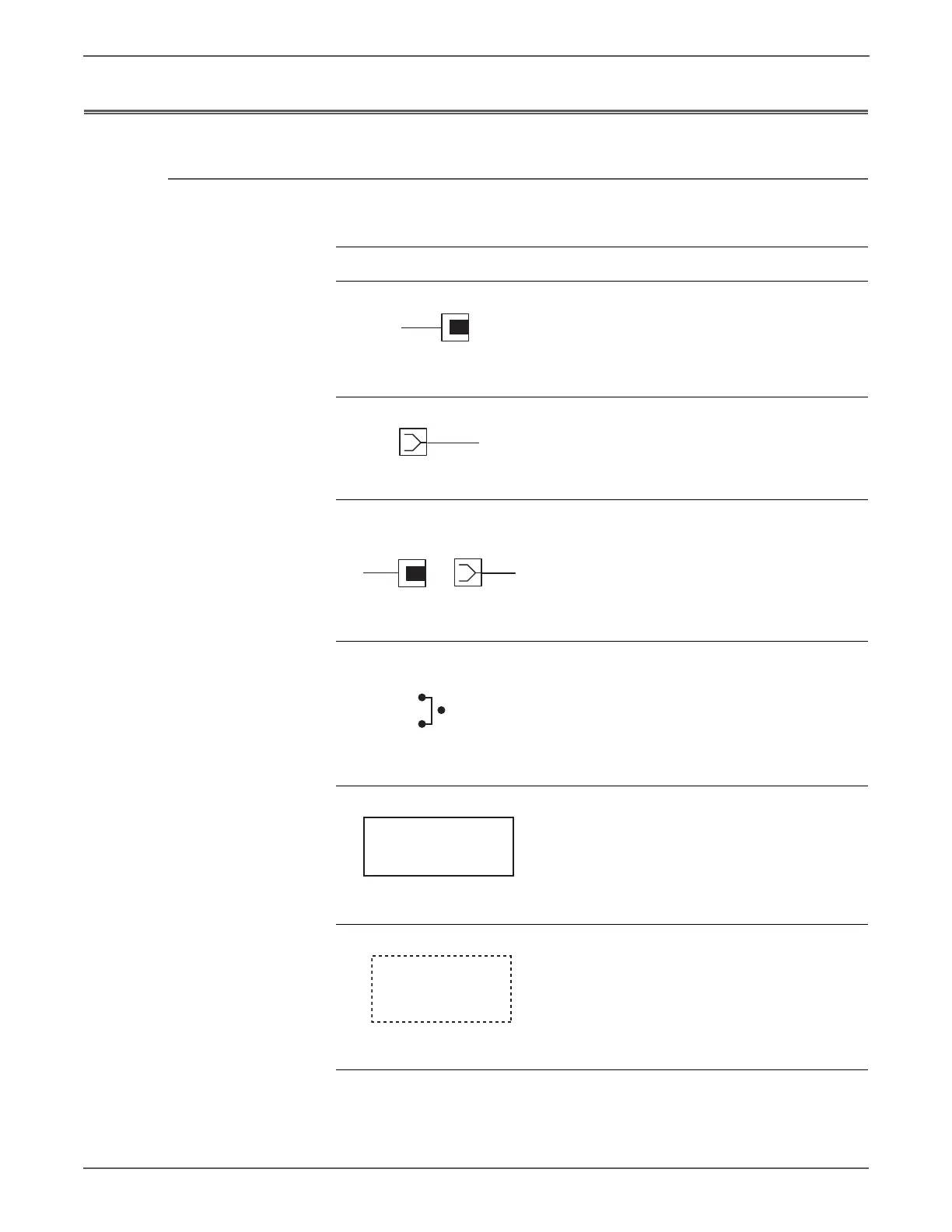

The following table lists the symbols used in the wiring diagrams.
Symbol Description
Denotes a Plug.
Denotes a Jack.
Denotes Pin yy and Jack yy of the connector
Pxx and Jxx.
Denotes a Jumper Point (JPxxx/xxx). Each end
of the Jumper connection has a numeric
designation.
Denotes the parts.
PL X.Y.Z implies the item “Z” of plate (PL) “X.Y”
in Parts List.
Denotes functional parts attached with
functional parts name.
s6128mfp-156
s6128mfp-157
P/Jxx
YY
s6128mfp-158
JPxxx
s6128mfp-159
Fuser
PL X.Y.Z
s6128mfp-160
Heater
s6128mfp-161
