Xerox Phaser 6128MFP - Fusing

Phaser 6128MFP Service Manual 2-11
Theory of Operation

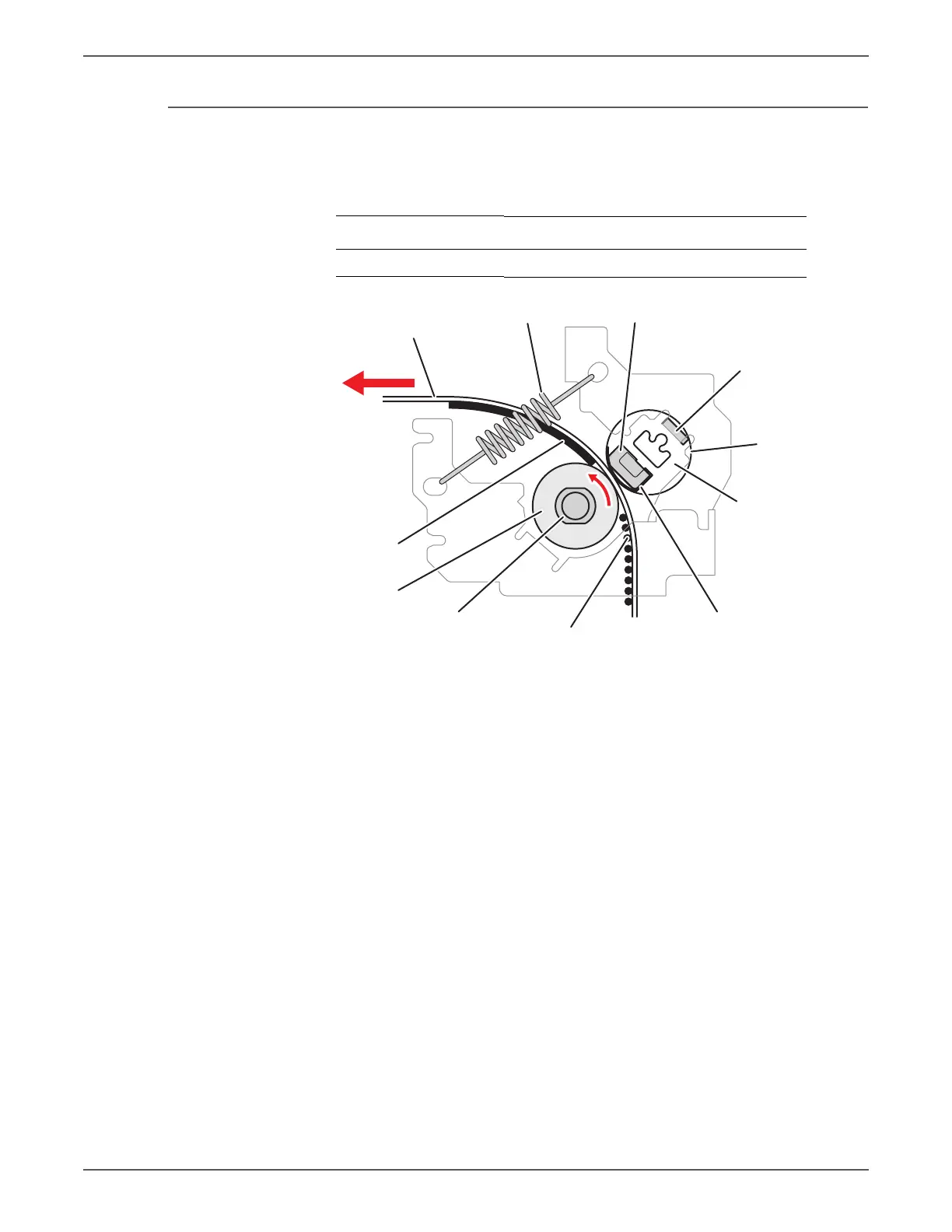

Fusing
The image is bonded to the media by the Fuser. The heat roller with the heat lamp
melts the toner particles. Toner is fused onto the media by the combination of
heat and pressure.
Warm-Up Stand By Printing
Main Heater Lamp On On/Off On
s6128-011
Paper
Nip Spring
Felt
Belt
Nip Head
Belt Frame
Sheet
Unfixed Toner
Heater Lamp
Heat Roller
Fixed Toner
