Phaser 6128MFP Service Manual 8-47
Service Parts Disassembly
FAX Board
PL10.6.9
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the ESS Shield (page 8-46).

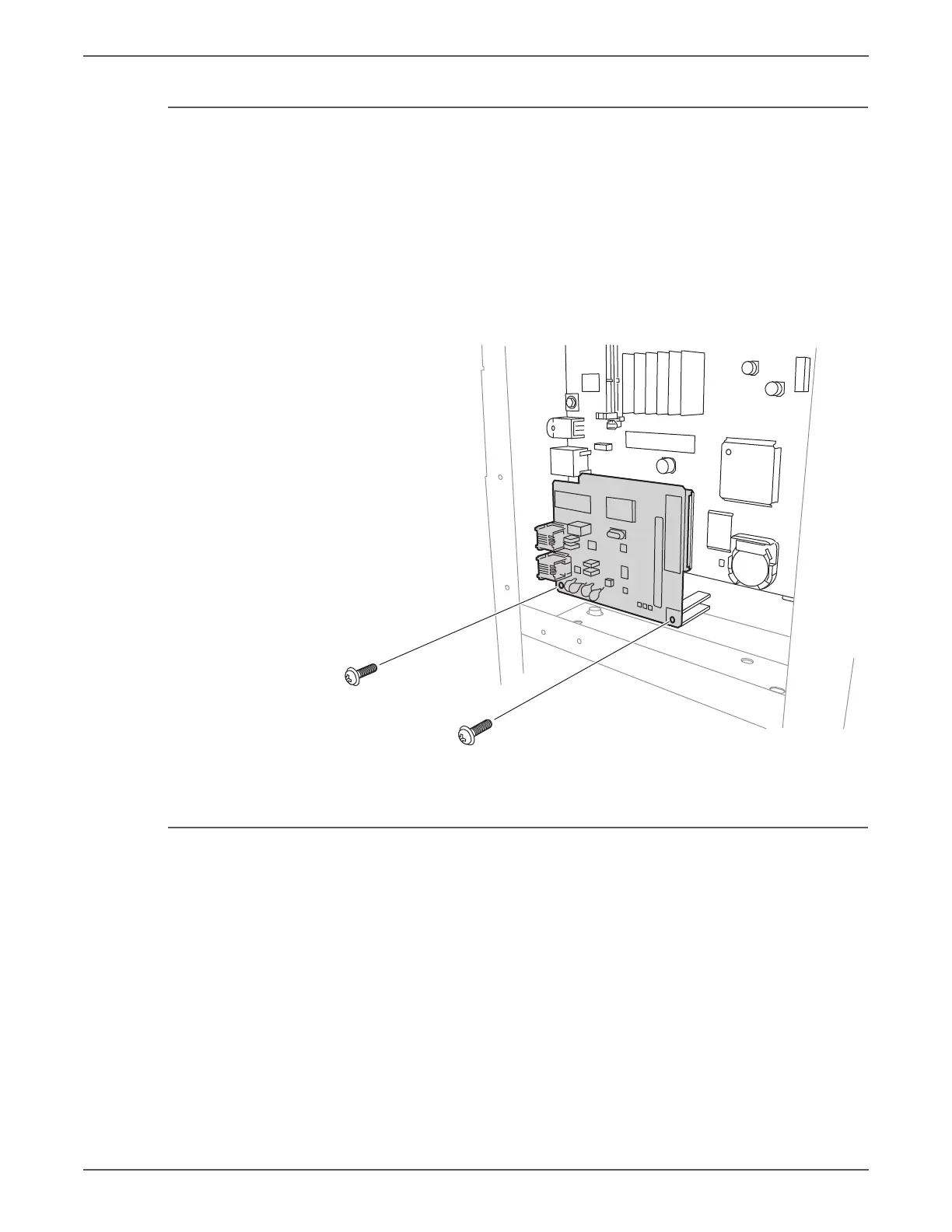

6. Remove 2 screws (silver, with flange, 6mm) that secure the board to the
chassis .
7. Release the board from the connector on the Image Processor Board.
LVPS
PL10.6.16
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
