Xerox Phaser 6128MFP - Right Side Door Switch

Phaser 6128MFP Service Manual 8-51
Service Parts Disassembly
Right Side Door Switch
PL5.1.9
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).

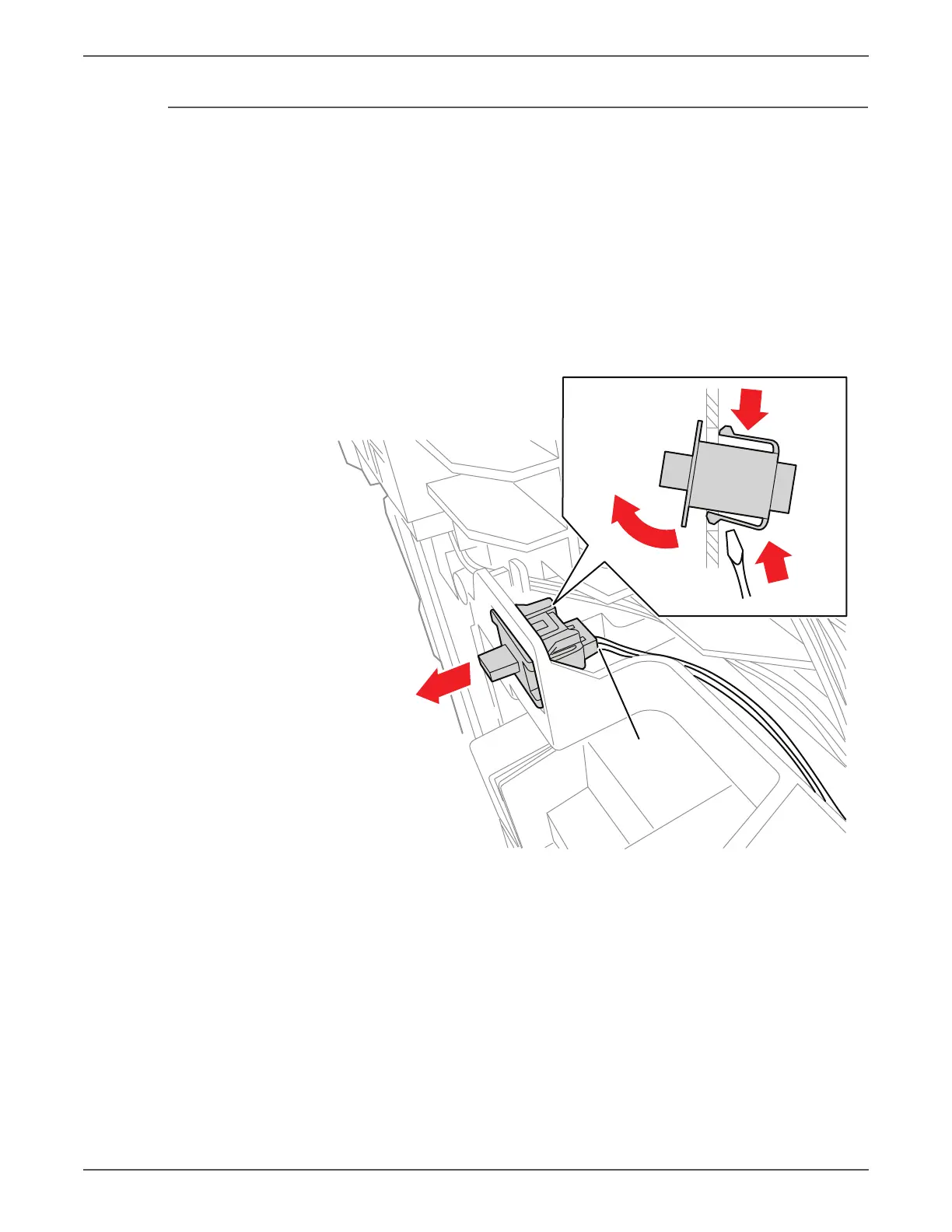

7. Using a miniature screwdriver, release the hooks that latch the switch in the
frame and remove the switch from the printer.
8. Unplug the switch from the harness connector (P/J291).
P/J291
s6128mfp-195
1
2
3
