8-66 Phaser 6128MFP Service Manual
Service Parts Disassembly
LVPS Card Cage
This procedure removes the entire LVPS enclosure including the Fan. Although it is
not associated with any one part, it is a necessary prerequisite for other
procedures.
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).

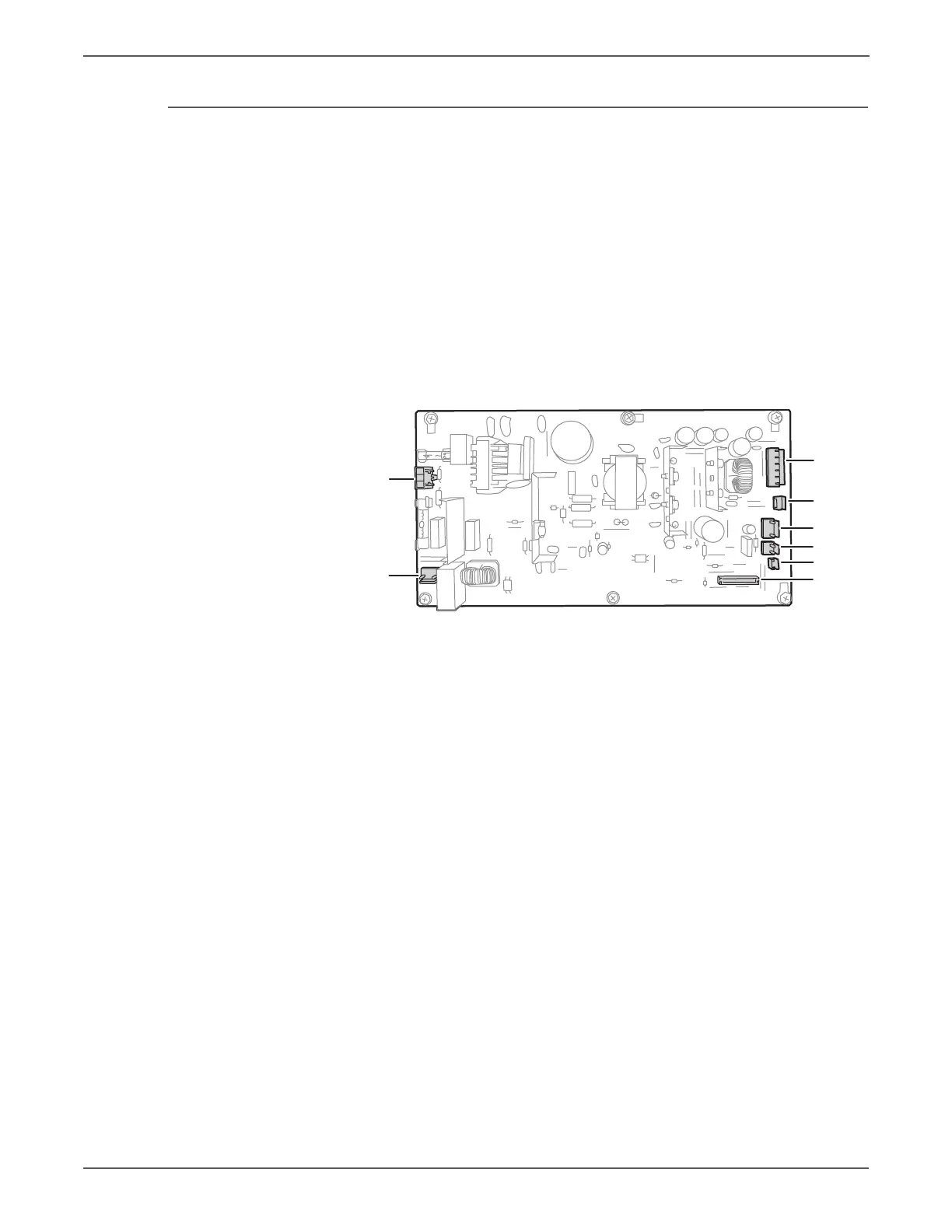

7. Disconnect 8 connectors on the LVPS and release the harnesses from the
clamps.
P/J47
P/J40
P/J48
P/J503
P/J44
P/J502
P/J501
P/J504
s6128mfp-191
