8-86 Phaser 6128MFP Service Manual
Service Parts Disassembly
Xerographics
Erase LED Assembly
(PL4.1.8)
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Remove the Right Side Cover (page 8-23).

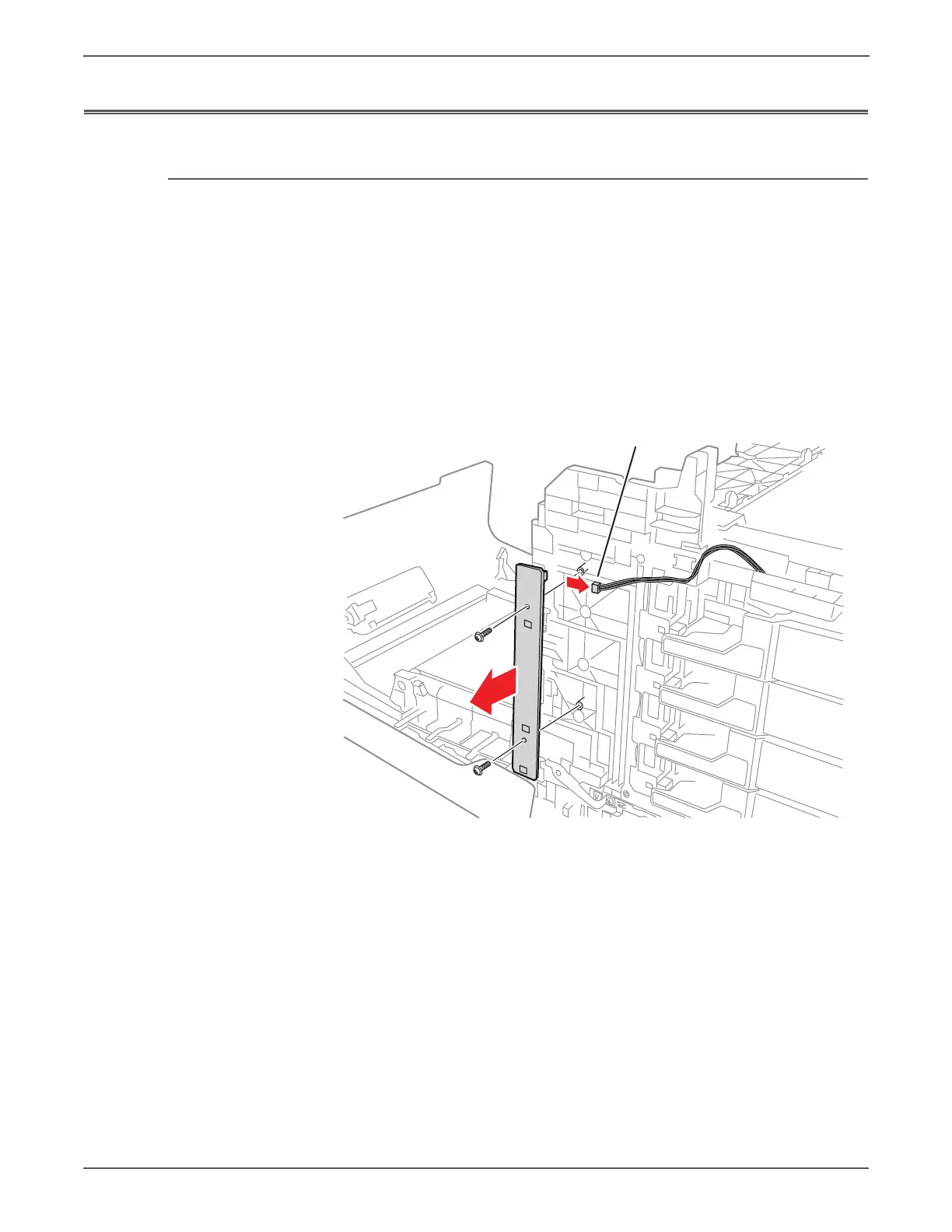

5. Remove the two screws (silver, tap, 8mm) that secure the Erase LED Assembly
to the chassis.
6. Remove the Erase LED Assembly from the printer.
7. Unplug the connector (P/J141) of the Erase LED Assembly.
To Next Page
