8-90 Phaser 6128MFP Service Manual
Service Parts Disassembly
Toner Cartridge Holders
PL 5.1.17~20
Note
The following procedure applies to each of the four Toner Cartridge Holders.
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Shield (page 8-46).
9. Remove the Inner Pole Cover (page 8-20).
10. Remove the LVPS Card Cage (page 8-66).
11. Remove the Duct Plate (page 8-62).
12. Remove the Breaker Chassis (page 8-64).
13. Remove the Toner Cartridges (page 8-13).

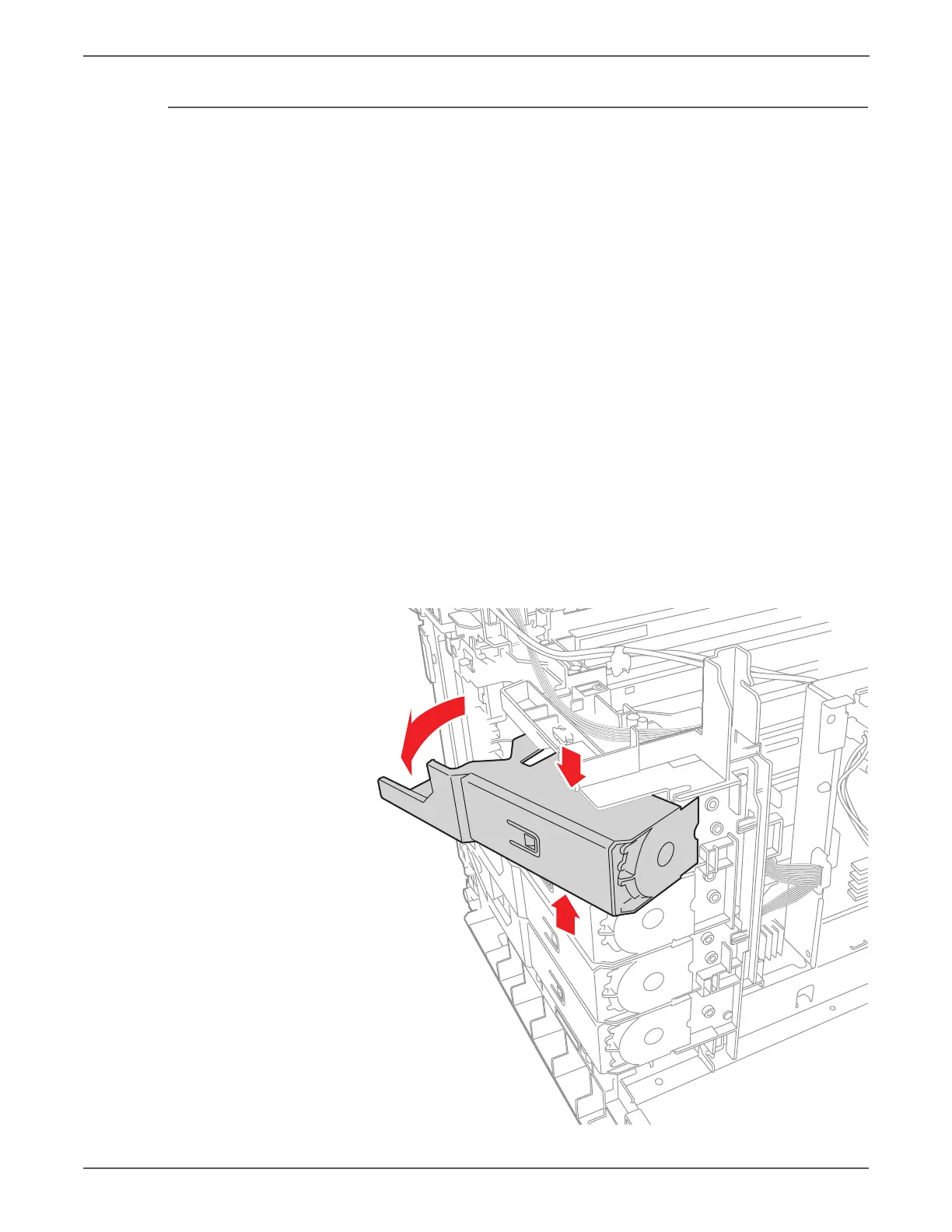

14. Squeeze the center of the Toner Cartridge Holder to release the hole of the
Toner Cartridge Holder from the boss of the Dispenser Frame. Open the Toner
Cartridge Holder by 90 degrees.
