Fan
PL10.6.17

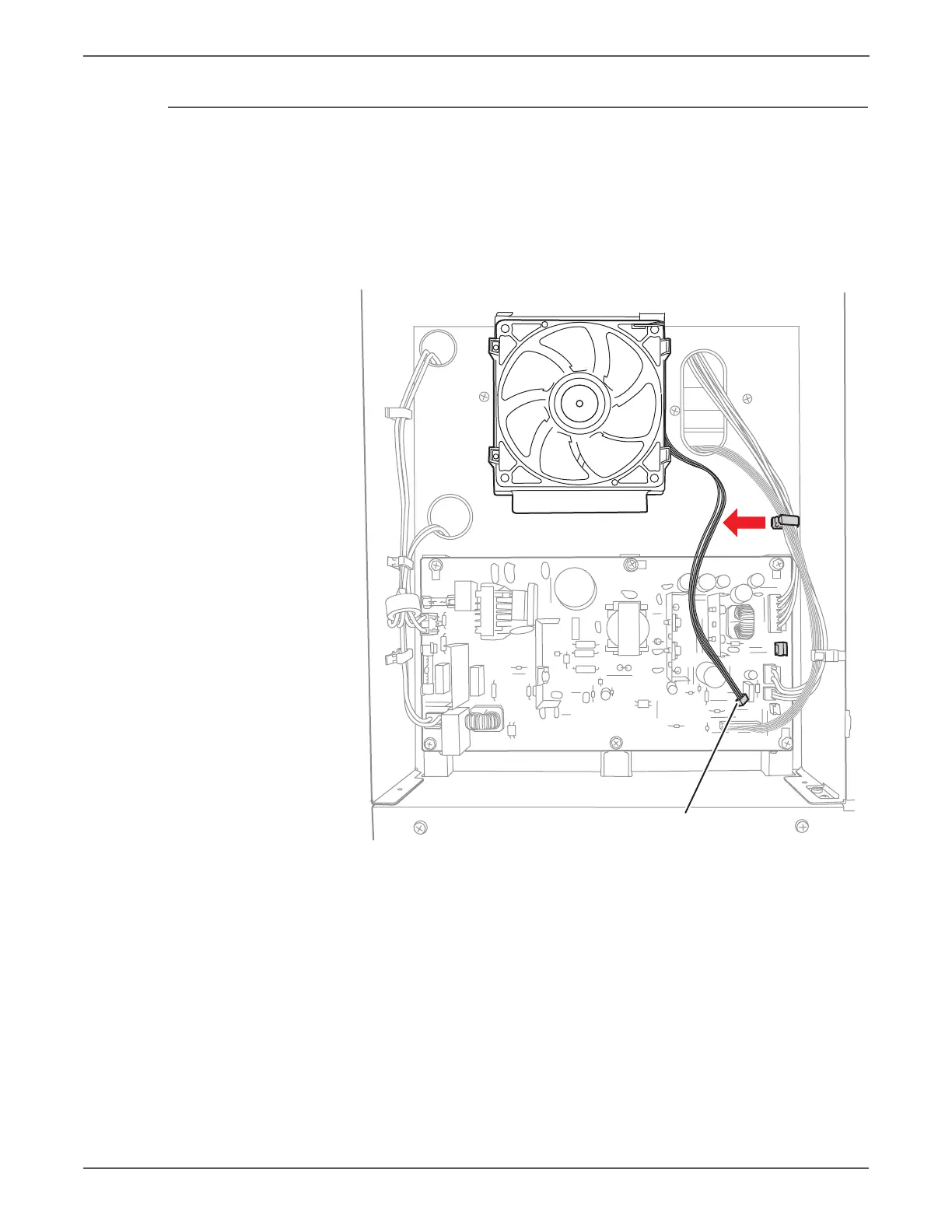

1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Disconnect P/J503 from the LVPS and release the Fan harness from the clamp
5. Release the 4 hooks of the fan duct to remove the FAN from the chassis.
s6128mfp-194
P/J503
