8-20 Phaser 6128MFP Service Manual
Service Parts Disassembly
Inner Pole Cover
PL10.1.3
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Cover (page 8-21).

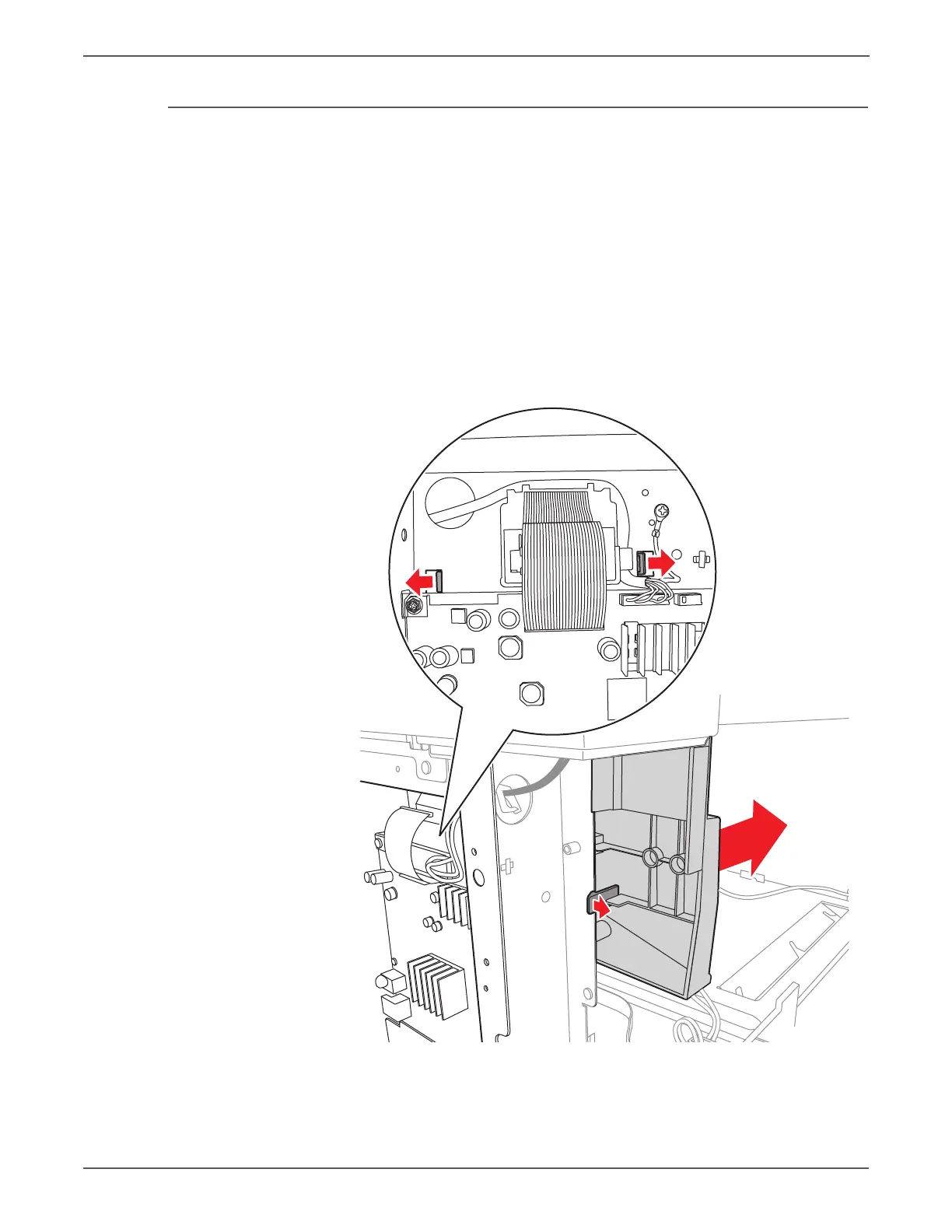

9. Release the 3 hooks that secure the Inner Pole Cover to the chassis.
1
2
To Next Page
