Xerox Phaser 6128MFP - Left Imaging Unit Restraint Block

8-88 Phaser 6128MFP Service Manual
Service Parts Disassembly

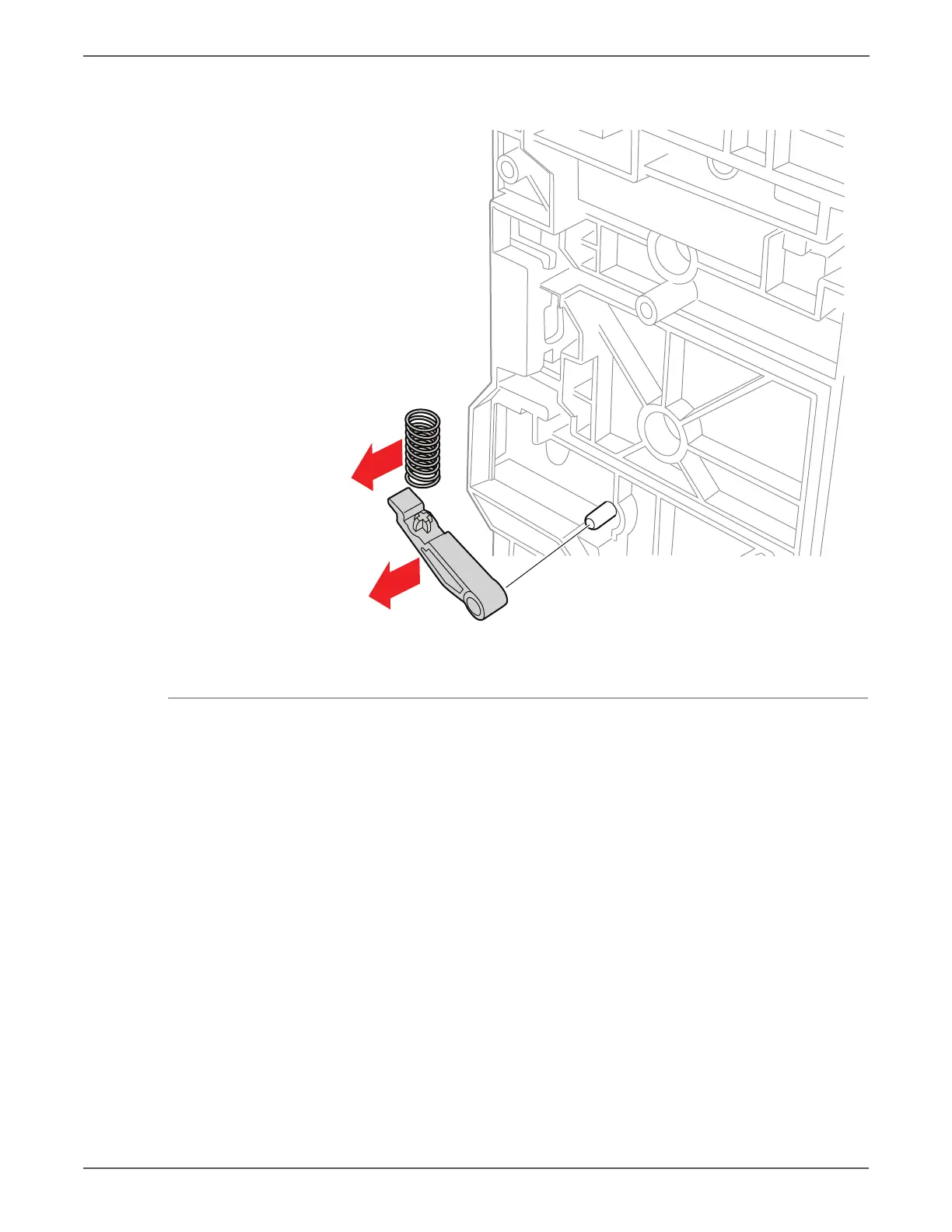

8. Remove the Imaging Unit Spring from the printer.
9. Rotate the Imaging Unit Lever slightly and remove it from the printer.
Left Imaging Unit Restraint Block
PL 4.1.98
1. Remove the Left Side Cover (page 8-17).
2. Remove the Main Drive Assembly (page 8-58).
3. Use a miniature screwdriver to release the hook on the Imaging Unit Restraint
Block.
s6128mfp-287
