Phaser 6128MFP Service Manual 8-79
Service Parts Disassembly
ADF Assembly
PL 10.10.1
1. Remove the ADF Input Tray (page 8-78).

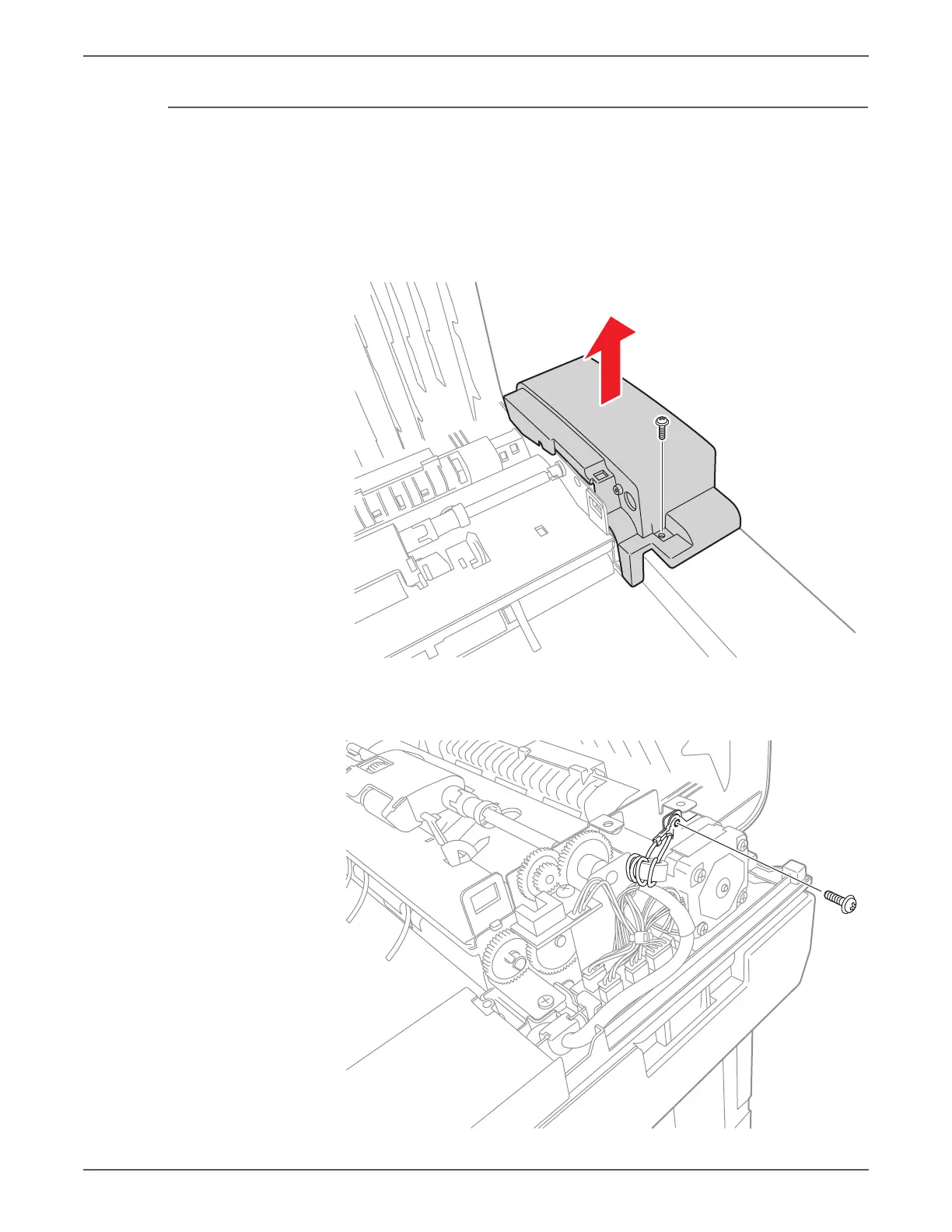

2. Remove 1 screw (silver, tap, 8mm) that secures the Rear ADF Cover.
3. Slightly raise the right side of the Rear ADF Cover, then move the cover to the
left until 2 hooks release.
4. Remove 1 screw (silver, 4mm) that secures the ADF Harness grounding
terminal.
s6128mfp-261
s6128mfp-262
