2-10 Phaser 6128MFP Service Manual
Theory of Operation
Excess Toner Collection
The excess toner is collected by the cleaner blade contacting the drum and is
moved to the Toner Cartridge collection box by two augers.

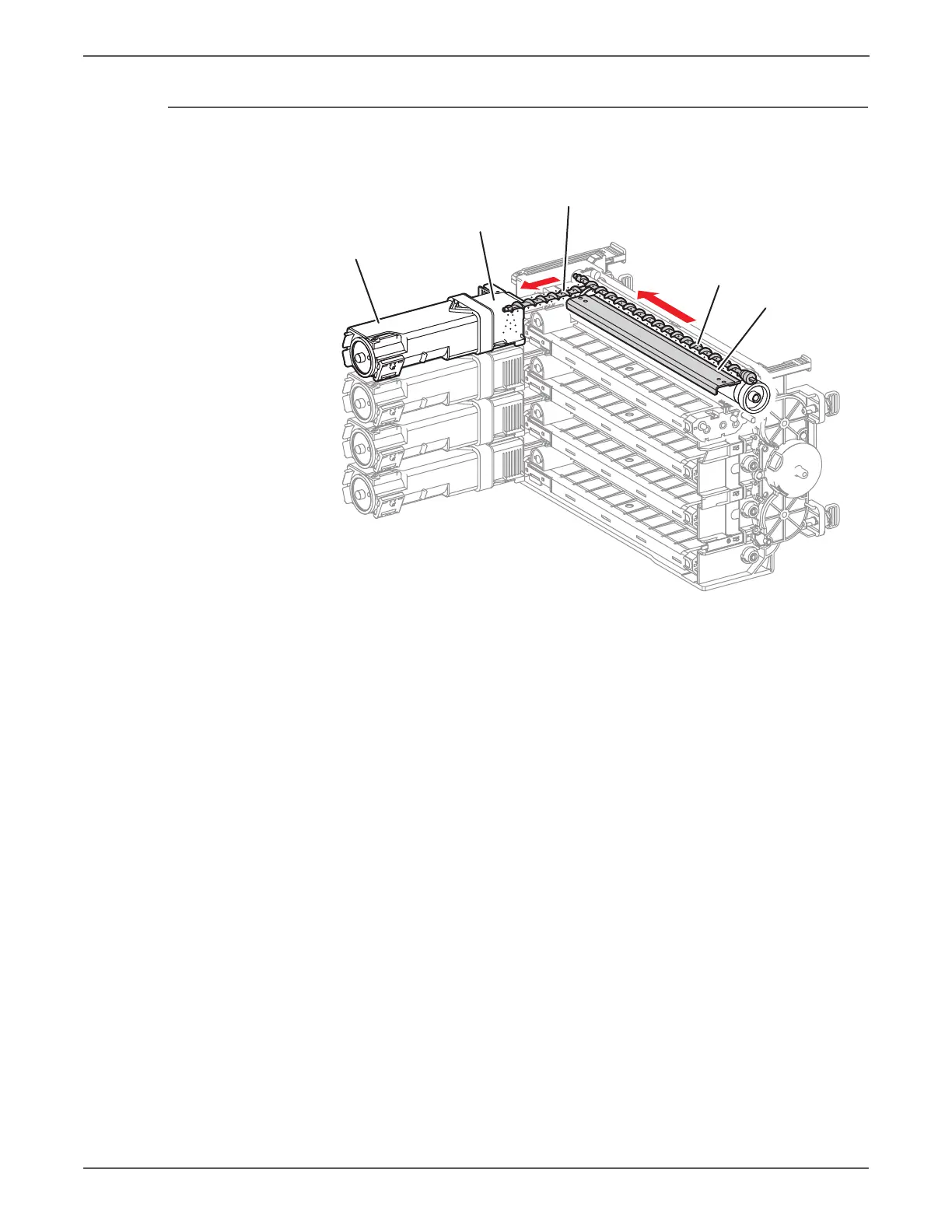

s6128mfp-010
Toner Cartridge
Collection Box
Auger Cleaning Side
Auger
Cleaner Blade
