Xerox Phaser 6128MFP - Sub-Drive Assembly

Phaser 6128MFP Service Manual 2-39
Theory of Operation
Sub-Drive Assembly

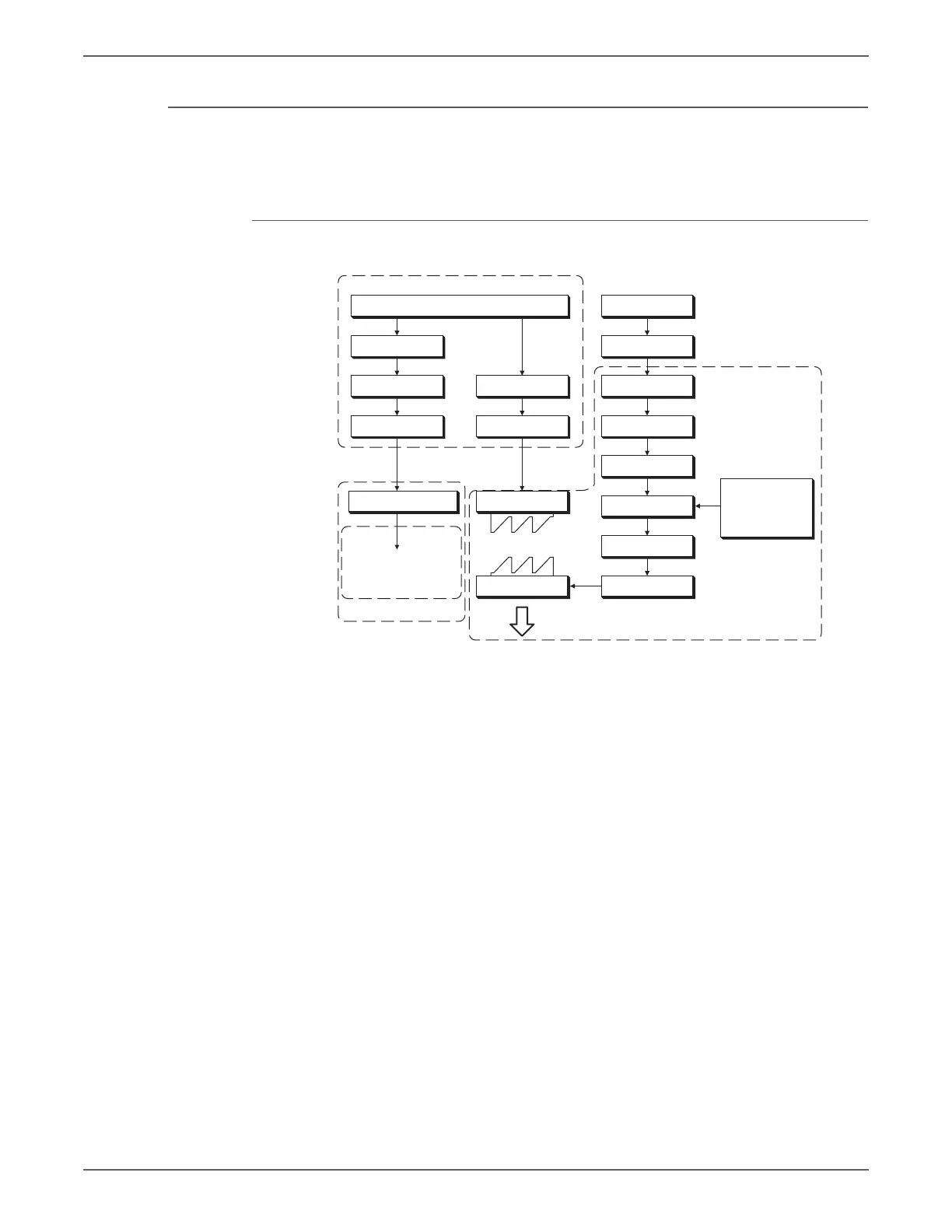

Sub Drive power is transmitted differently for Black and White or Color as shown in
the following figures.
Black and White Mode
Gear D1
Gear D2
Gear DK
Gear D1 Gear P2
Main DriveSub Motor
Gear D5
Magnet Gear (K)
Gear D3 In
Sub Drive
Gear D3 Out
Flange D3
Cam C
Gear C
Gear P4-2
Gear P4
Gear P3
Color Mode
Switching
Solenoid
Imaging Unit Drive
Hsg Assy Deve (K)
[ Magnet Roller (K) ]
[ Name of Moving Parts ]
Imaging Unit
s6128-038
Black And White Mode
