2-38 Phaser 6128MFP Service Manual
Theory of Operation
s6128-037

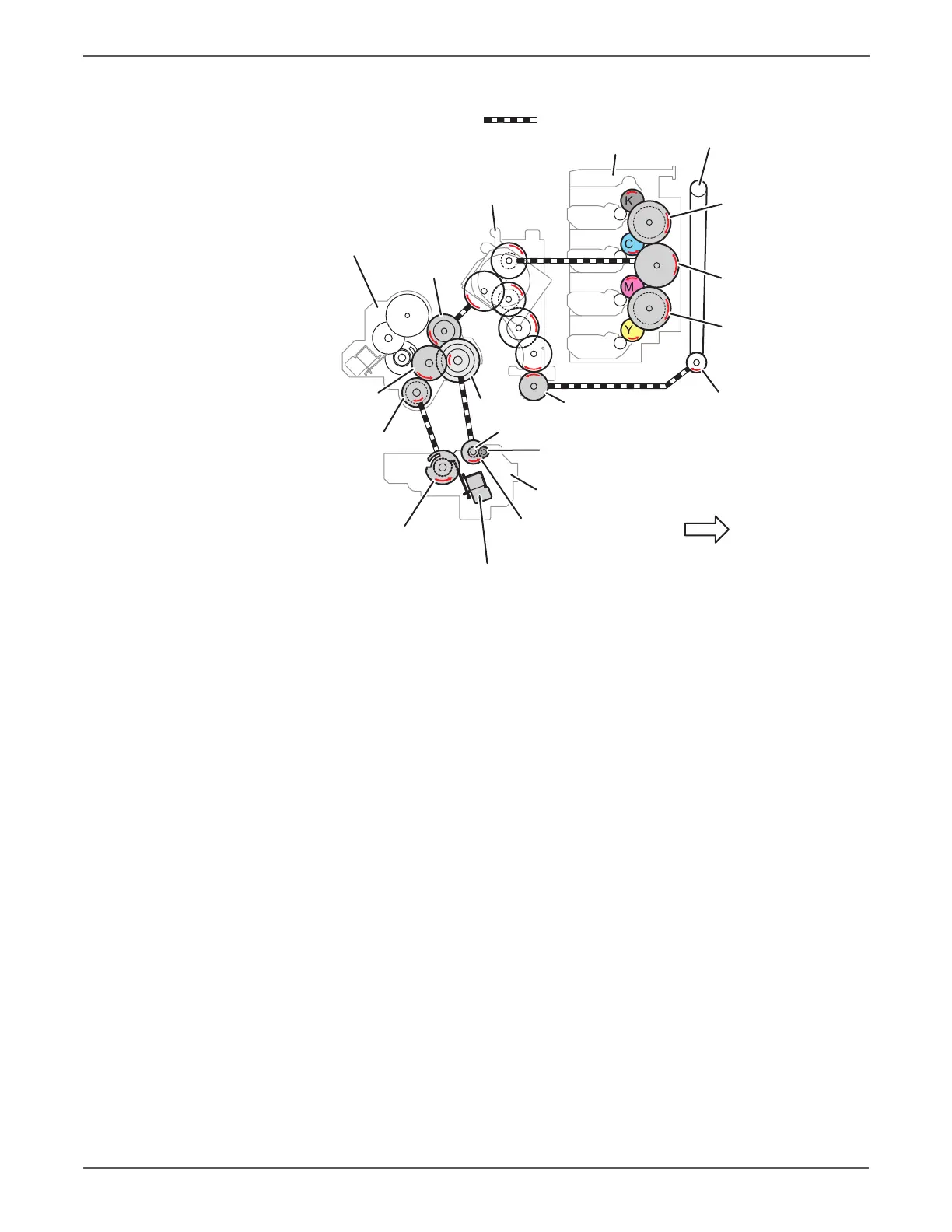

Paper Feed Drive
Imaging Unit
Main Drive
Gear P2
Gear P3
Gear P4
Gear P5
Feed Gear
[ Feed Roller ]
Registration Feeder Chute
Registration Clutch
[ Registration Roller ]
Rubber Registration Gear
Metal Registration Gear
[ Metal Registration Roller ]
Feed Solenoid
Imaging Unit
Gear 2
[ Drum (M) ]
[ Drum (Y) ]
Imaging Unit
Gear 1
Imaging Unit
Gear 2
[ Drum (K) ]
[ Drum (C) ]
Transfer Belt
Gear T4
Drive Gear
[ Belt ]
[ Name Of Moving Parts ]
: Indicates The Engagement Of Gears
Front
