Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 4-41
General Troubleshooting
IOT Motor, Solenoid Testing Procedures
Procedures for testing each IOT motors, solenoids and erase lamps using Service
Diagnostics.
Main Motor
The Main Motor drives the transfer belt and Imaging Unit drums.
Note
Install the interlock override to provide power to the device under test.
1. Enter Service Diagnostics (page 4-4).
2. Open the Front Cover.
3. Perform the Main Motor test: Engine Diag > Motor Test > Main Motor DO-0,
DO-1, DO-2. The rotational speed order of the Main Motor test is DO-2 > DO-0
> DO-1.
4. Verify that the Main Motor is running, the imaging unit drums are rotating,
and the transfer belt is moving.

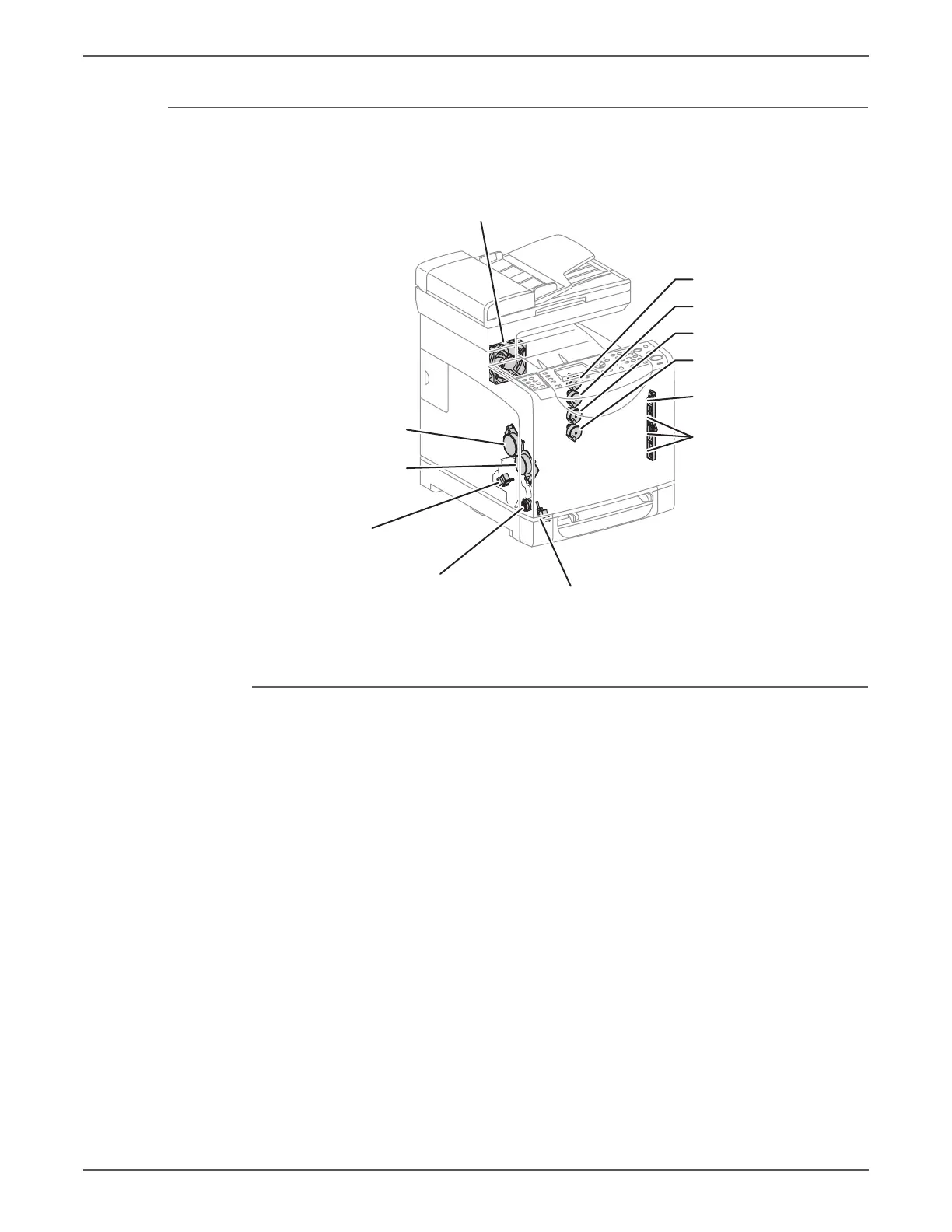

s6128mfp-081
Black Drum Erase Lamp
Yellow, Magenta And
Cyan Drum Erase Lamp
Sub Motor
Main Motor
K Mode Solenoid
Tray 2 Feed Solenoid (Half / Full Rotation)
Tray 2 Feed Solenoid (Auto Off)
Fan (High / Low)
Yellow Toner Motor
Magenta Toner Motor
Cyan Toner Motor
Black Toner Motor
Registration Clutch

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
