Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 2-5
Theory of Operation
Exposure
Four laser diodes (one for each color) in the Laser Unit emit laser beams. The
beams are directed by mirrors to the rotating polygon mirror attached to the
scanner motor. As the polygon mirror rotates, the beams are directed through a
series of lenses and mirrors to each of the drums, which are scanned by the beams
from end to end in the axial direction.
The negatively charged drum surface is scanned by the laser beams to form an
invisible electrostatic latent image on the drum surface. The process is performed
in parallel for Cyan, Magenta, Yellow, and Black colors.
The area on the surface where the laser beam strikes becomes conductive. The
negative charge on the surface flows to the more positive drum, lowering the
voltage potential. In this way the surface areas exposed to the laser beam become
the electrostatic latent image.

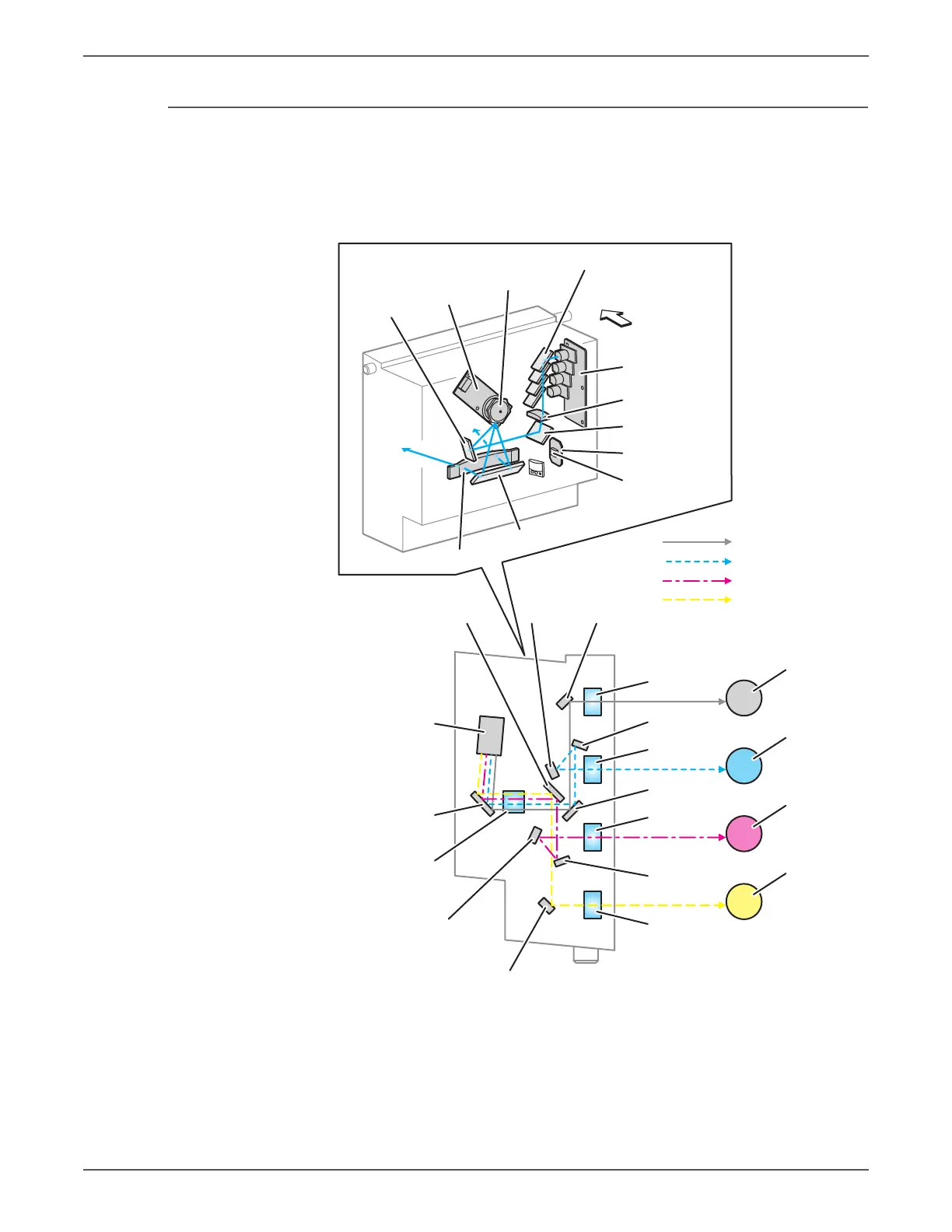

: Laser beams (Y)
: Laser beams (M)
: Laser beams (C)
: Laser beams (K)
s6128mfp-004
Front
Drum (K)
Drum (C)
Drum (M)
Drum (Y)
Polygon Mirror
Mirror
Mirror
Lens
Mirror
Mirror
Mirror
Lens
Mirror
Lens
Mirror
Lens
Mirror
Mirror
Lens
Laser Diode
Board
Polygon Mirror
Scanner
SOS Board
Lens
Lens
Mirror
Mirror
Mirror
Mirror
Rear View
SOS Sensor

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
