Xerox Phaser 6128MFP - Right Side Cover

Phaser 6128MFP Service Manual 8-23
Service Parts Disassembly
Right Side Cover
PL10.14.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Open the Toner Door.
5. Remove the 8 screws (silver, tap, 8mm) that secure the cover to the chassis.
6. Release hooks to remove the cover.

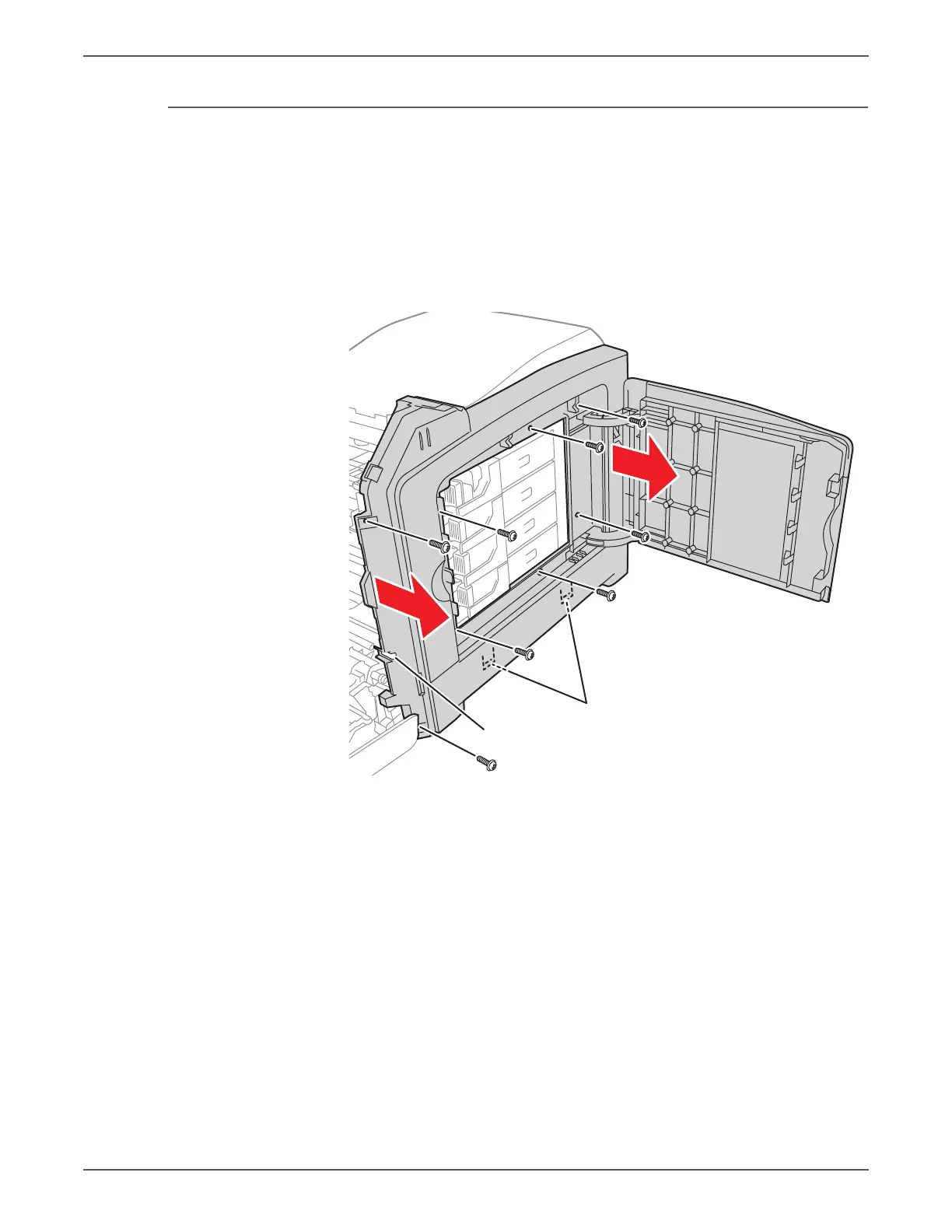

s6128mfp-251
Hook
Hooks
