Phaser 6128MFP Service Manual 8-19
Service Parts Disassembly
Outer Pole Cover
PL 10.1.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the screw (silver, 6mm) and screw (silver, tap, 8mm) that secure the
Outer Pole Cover.
4. Push the boss of the Top Cover (PL10.1.4) using the screwdriver and release
the front of the Outer Pole Cover.
5. Release the 2 hooks that secure the Outer Pole Cover at the back to remove
the cover.
Replacement Note
Engage the 2 hooks on the back side of the Outer Pole Cover first.

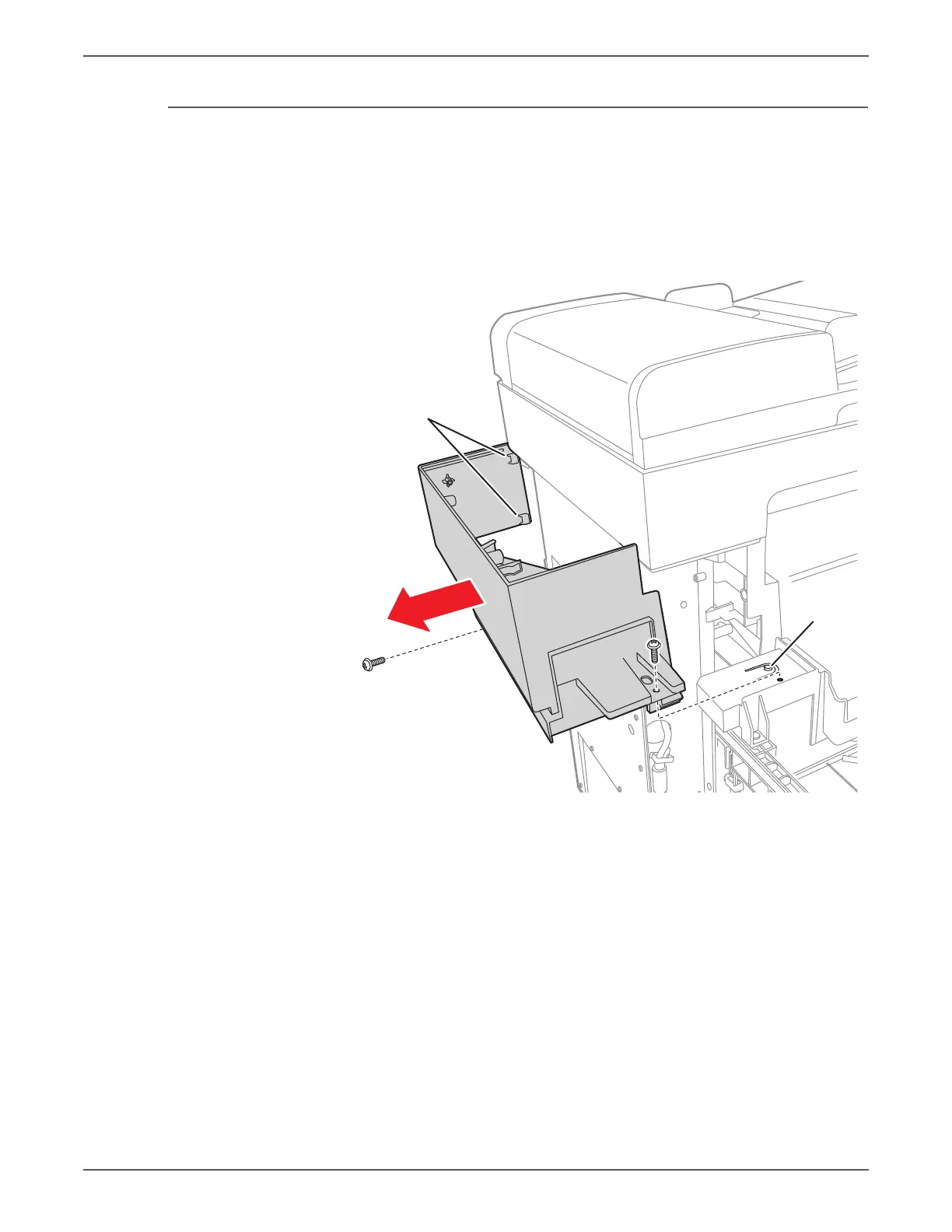

s6128mfp-299
Boss
Hooks
6mm
8mm
8mm
8mm
