Xerox Phaser 6128MFP - Fuser

Phaser 6128MFP Service Manual 8-11
Service Parts Disassembly
Fuser
PL6.1.1
Warning
Allow the Fuser to cool before using this procedure.
1. Open the Front Cover.
2. Pull the lever to release the lock.

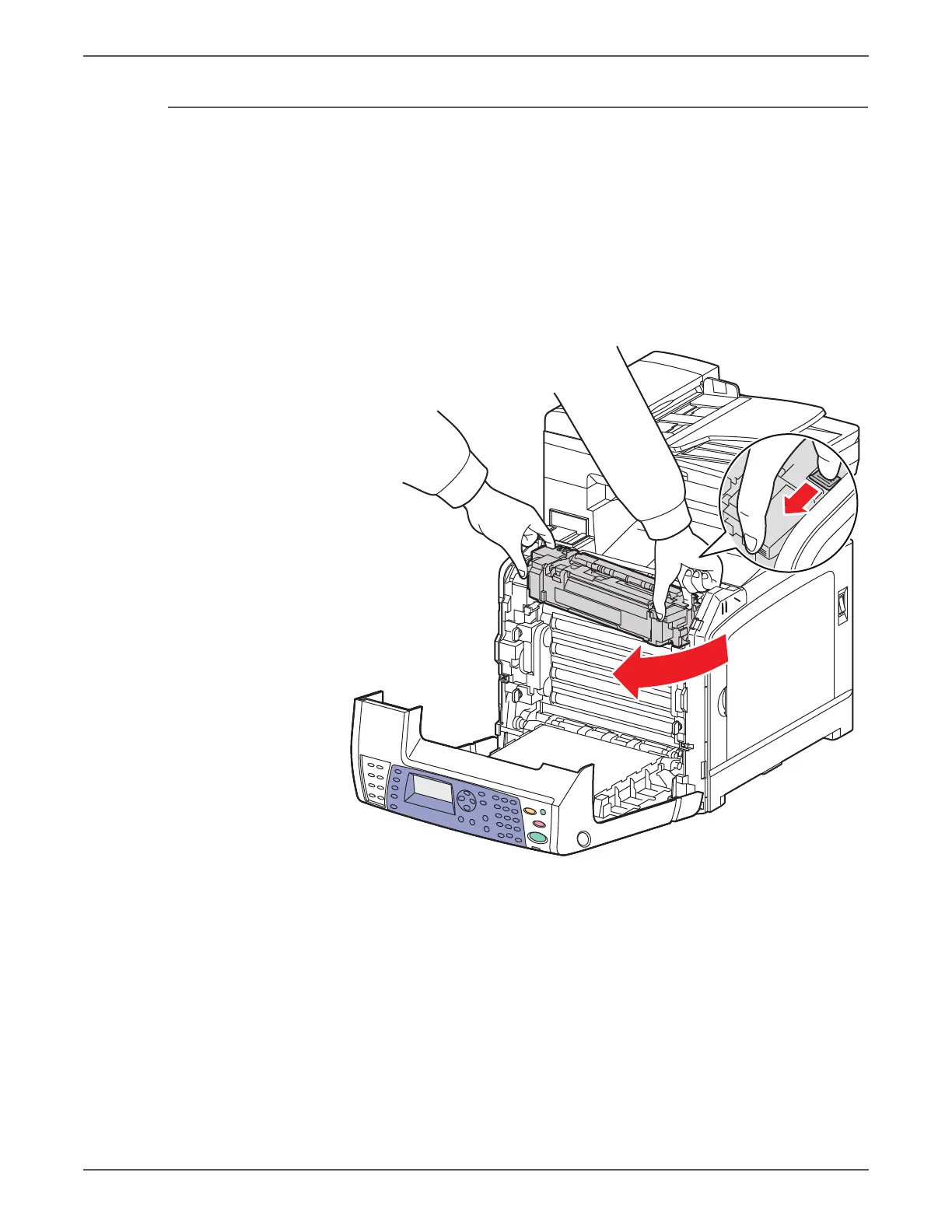

3. Swing the right side of the Fuser toward you with the lever released to unplug
the fuser connector.
s6128mfp-182
2
1
