Phaser 6128MFP Service Manual 8-91
Service Parts Disassembly

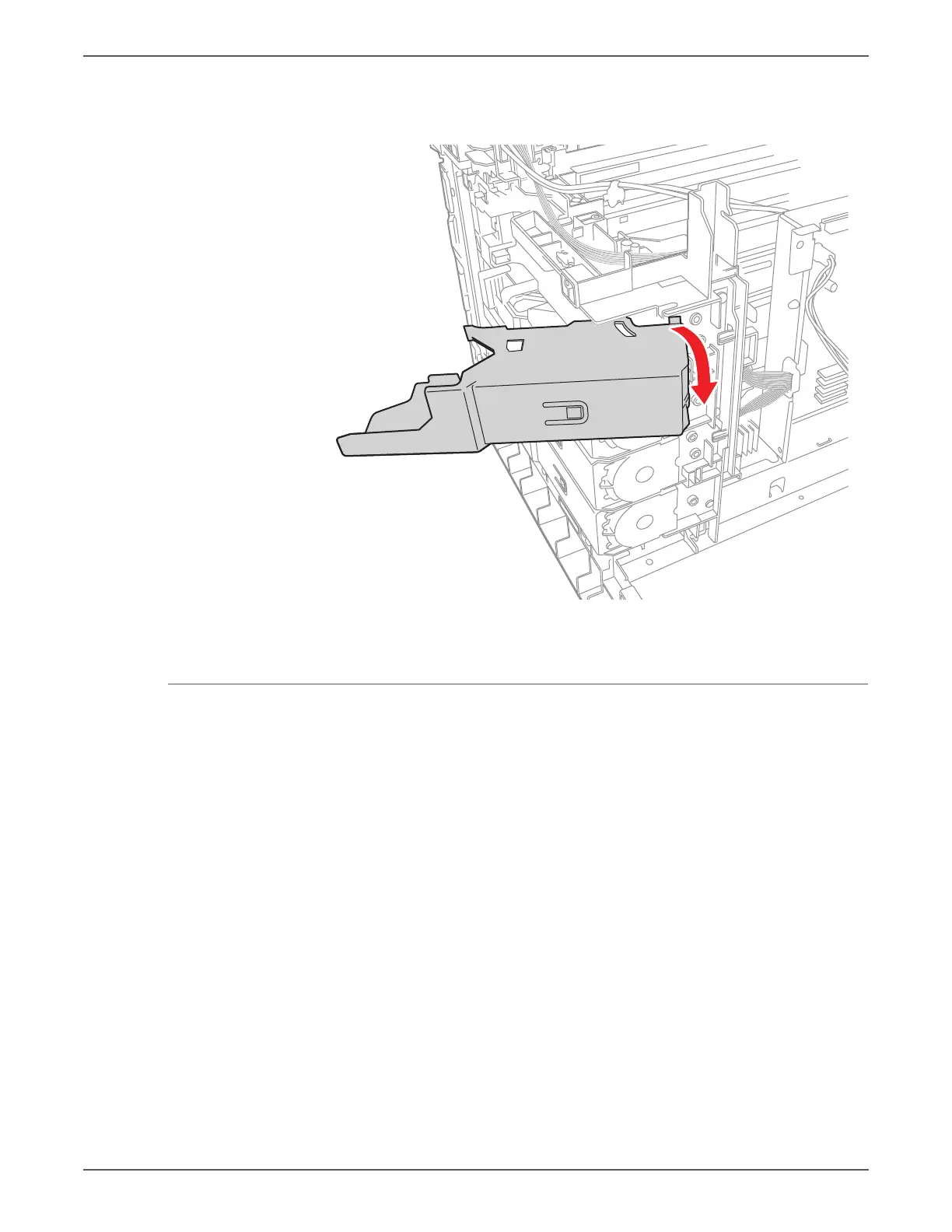

15. Press the boss part of the Toner Cartridge Holder, remove the Toner Cartridge
Holder from the printer.
Dispense Assembly
PL 5.1.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Shield (page 8-46).
9. Remove the Inner Pole Cover (page 8-20).
10. Remove the LVPS Card Cage (page 8-66).
11. Remove the Duct Plate (page 8-62).
12. Remove the Breaker Chassis (page 8-64).
13. Remove the Toner Cartridge Holders (page 8-90).
14. Release the hooks of the LVPS Main Harness connector (P5041), using needle
nose pliers, to remove it from the Dispense Assembly.
To Next Page
