Xerox Phaser 6128MFP - ADF Seperator Pad; ADF Input Tray

8-78 Phaser 6128MFP Service Manual
Service Parts Disassembly
ADF Seperator Pad
PL 10.10.4

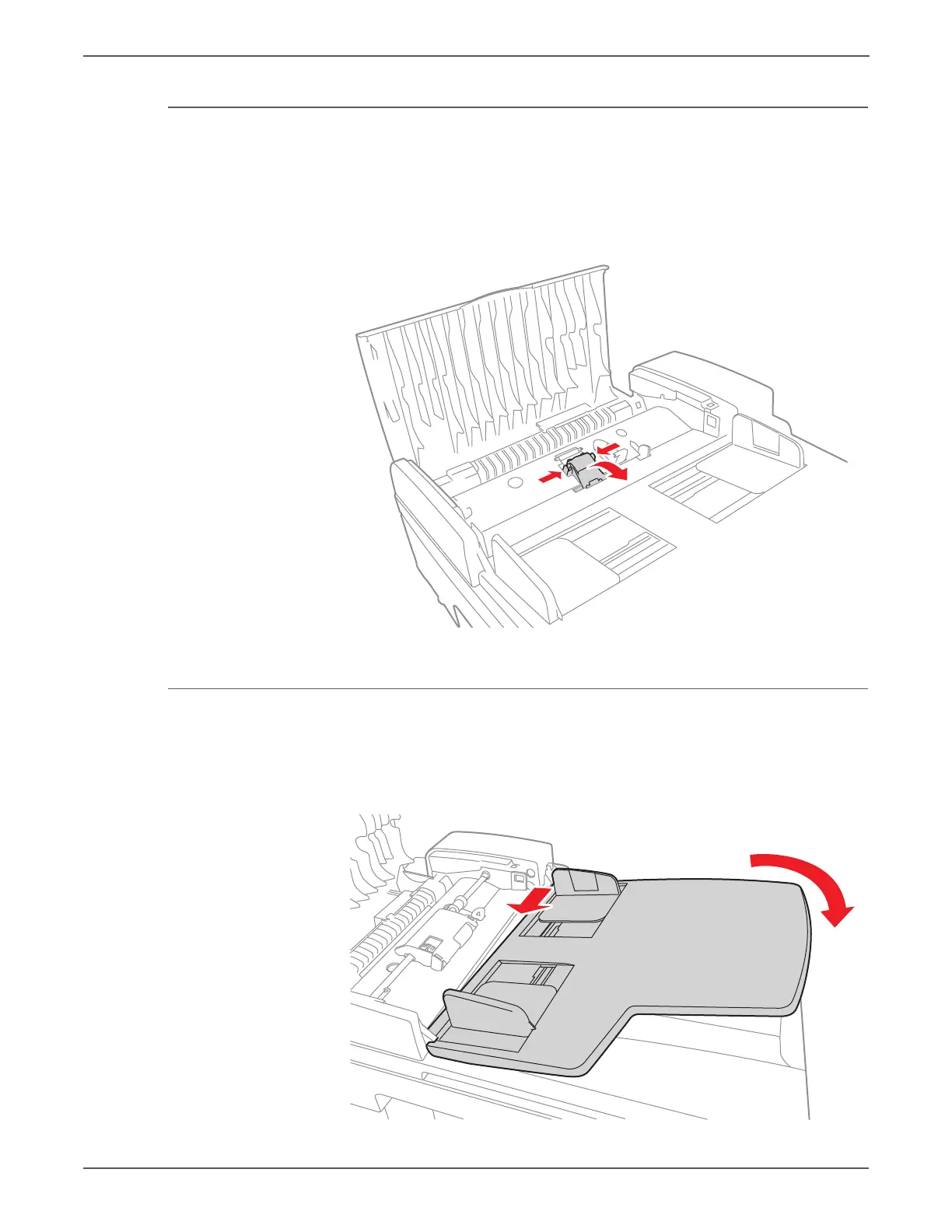

1. Open the ADF Jam Cover.
2. Remove the ADF Feed Roll Assembly (page 8-77).
3. Squeeze the tabs inward to release the ADF Seperator Pad from the chassis.
ADF Input Tray
PL 10.10.11
1. Open the ADF Jam Cover.
2. Release the tray hinges from the bosses in the ADF cover.
s6128mfp-259
s6128mfp-260
