General Information
Consumables
Consumables consist of 4 Toner Cartridges.
Each Toner Cartridge has a CRUM (Customer Replaceable Unit Meter) to record
toner usage information. A CRUM counts the amount of remaining toner. When
toner empty is detected, Life End status is displayed to indicate toner empty.
CMY Toner is not consumed when printing in monochrome mode or when printing
Gray scale. Internal counters track consumables and maintenance life.
Life ratings are based on A-size sheets at 5% coverage.
Toner Cartridge Print Life
C,M,Y Black
Standard Capacity 1,000 pages 1,000 pages
High Capacity 2,500 pages 3,100 pages

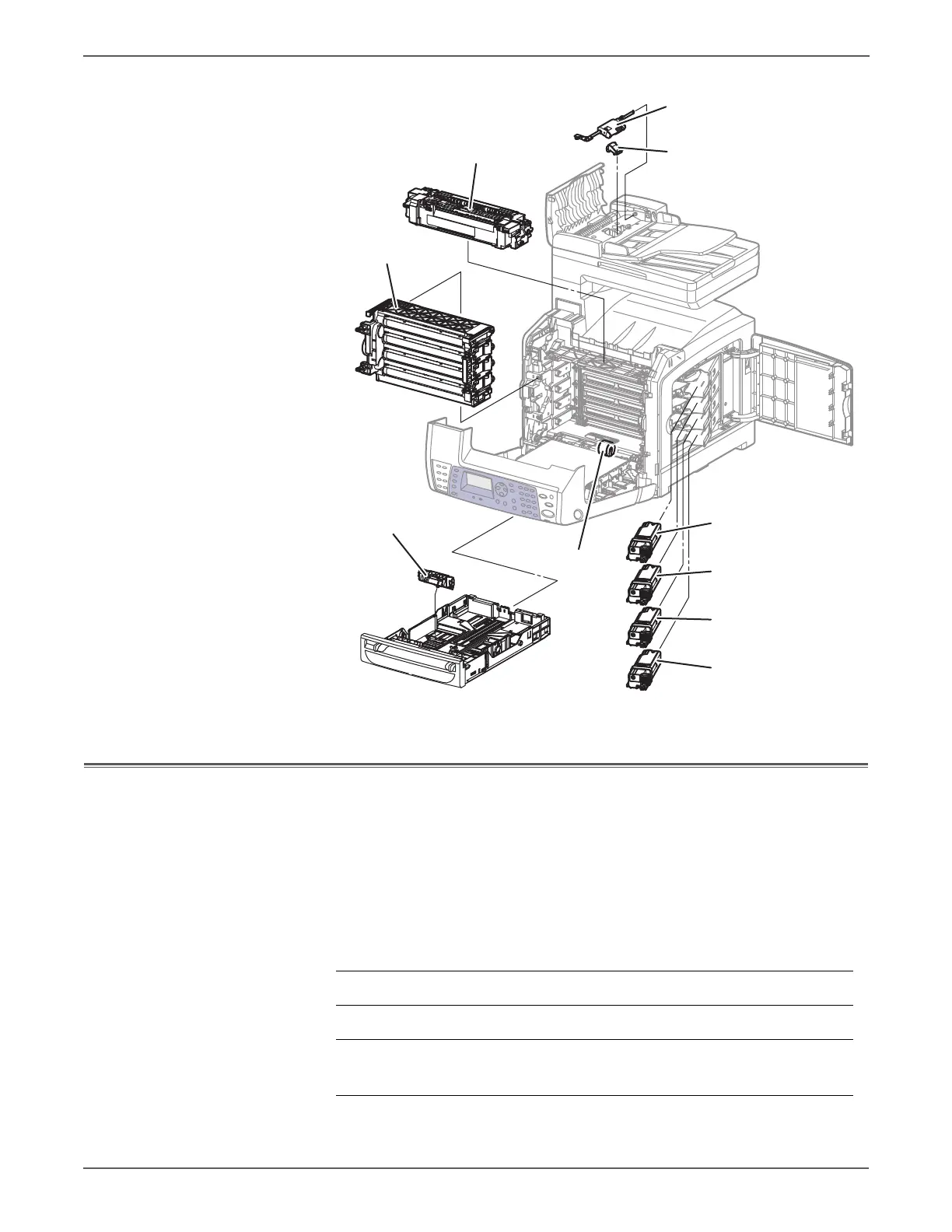

s6128mfp-130
PL10.10.3
ADF Feed Roller Assembly
PL10.10.4
ADF Separator Pad Assembly
PL6.1.1
Fuser Assembly
PL4.1.21
PHD Assembly
PL10.3.5
Separator Roller
Assembly
PL3.2.4
Feed Roller
Assembly
PL5.1.21
Toner Cartridge (K)
PL5.1.22
Toner Cartridge (C)
PL5.1.23
Toner Cartridge (M)
PL5.1.24
Toner Cartridge (Y)

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
