Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 8-35
Service Parts Disassembly

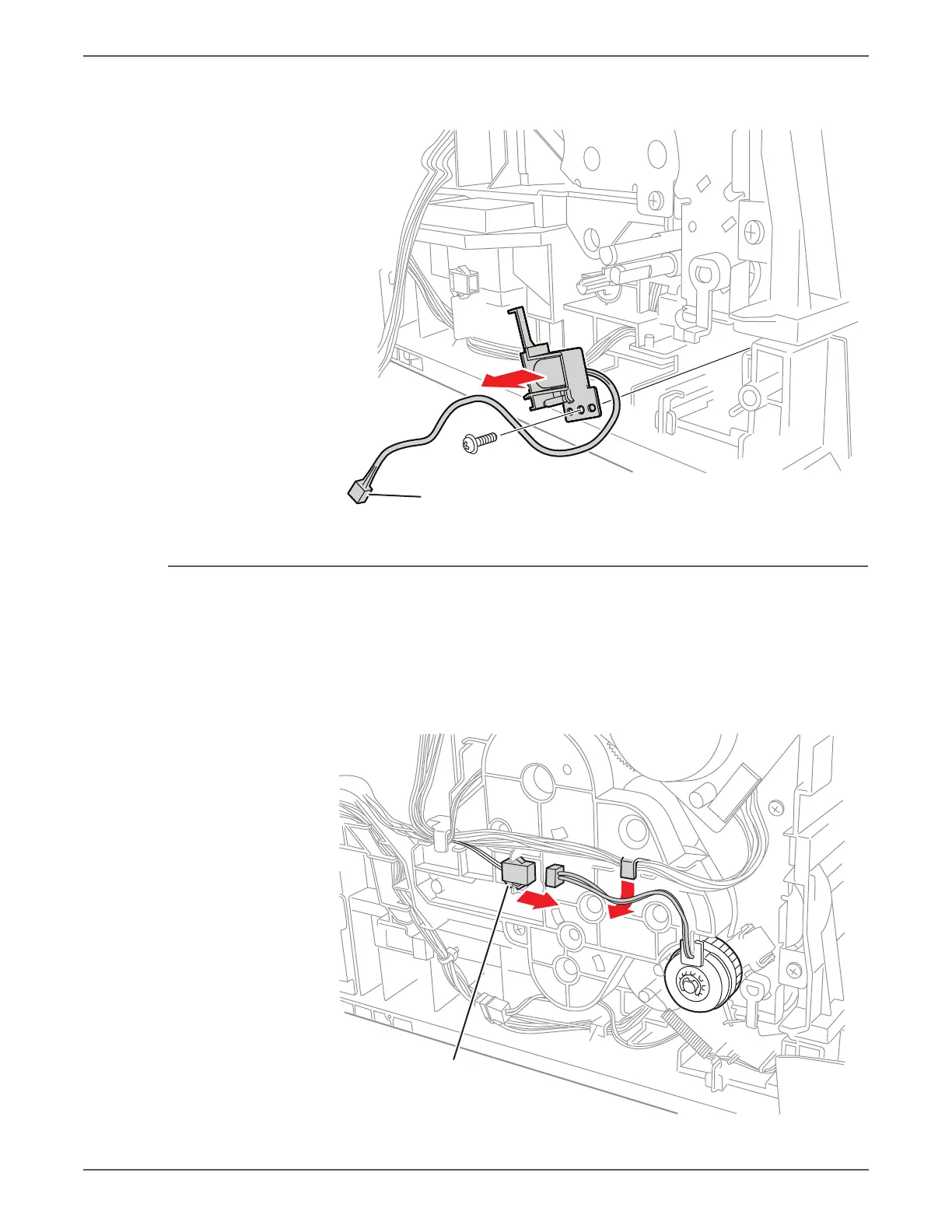

15. Remove the screw (silver, tap, 8mm) that secures the Feed Solenoid to the
chassis to remove the solenoid.
Drive Clutch and Bearing Kit
PL10.4.99
1. Remove the Left Side Cover (page 8-17).
2. Release the Drive Clutch harness from the cable restraint on the Feed Drive
Assembly.
3. Disconnect the Drive Clutch connector, P/J262. Allow the relay connector to
remain with the printer side of the harness.
s6128mfp-233
P/J231
P/J262
s6128mfp-279
