8-56 Phaser 6128MFP Service Manual
Service Parts Disassembly
GFI Breaker
PL10.7.10
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the LVPS Card Cage (page 8-66).
8. Disconnect P/J482 and the FASTON terminal FS484 on the GFI breaker.

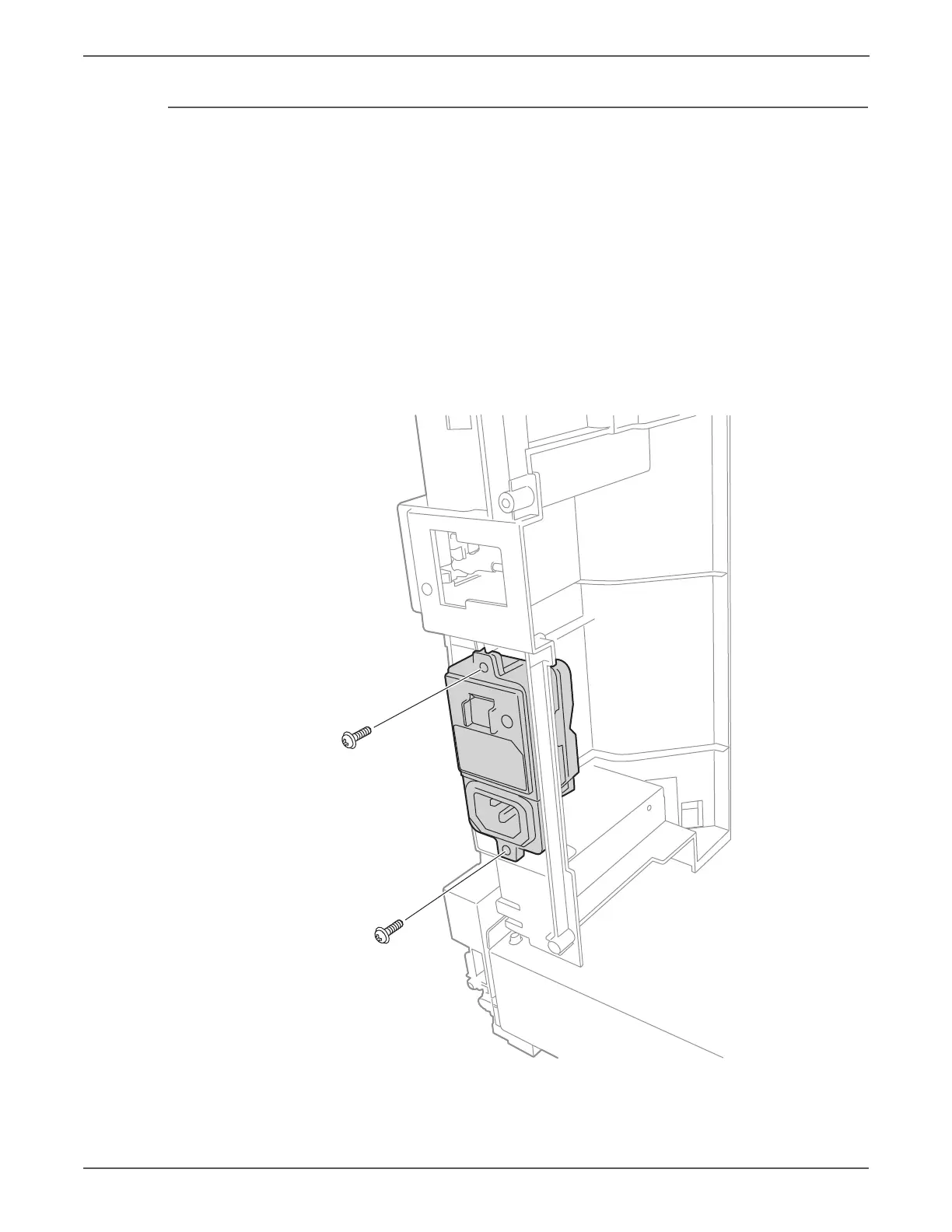

9. Remove 2 screws (silver, tap, 12mm) that secure the GFI Breaker in the chassis
to remove the breaker.
