Phaser 6128MFP Service Manual 8-55
Service Parts Disassembly

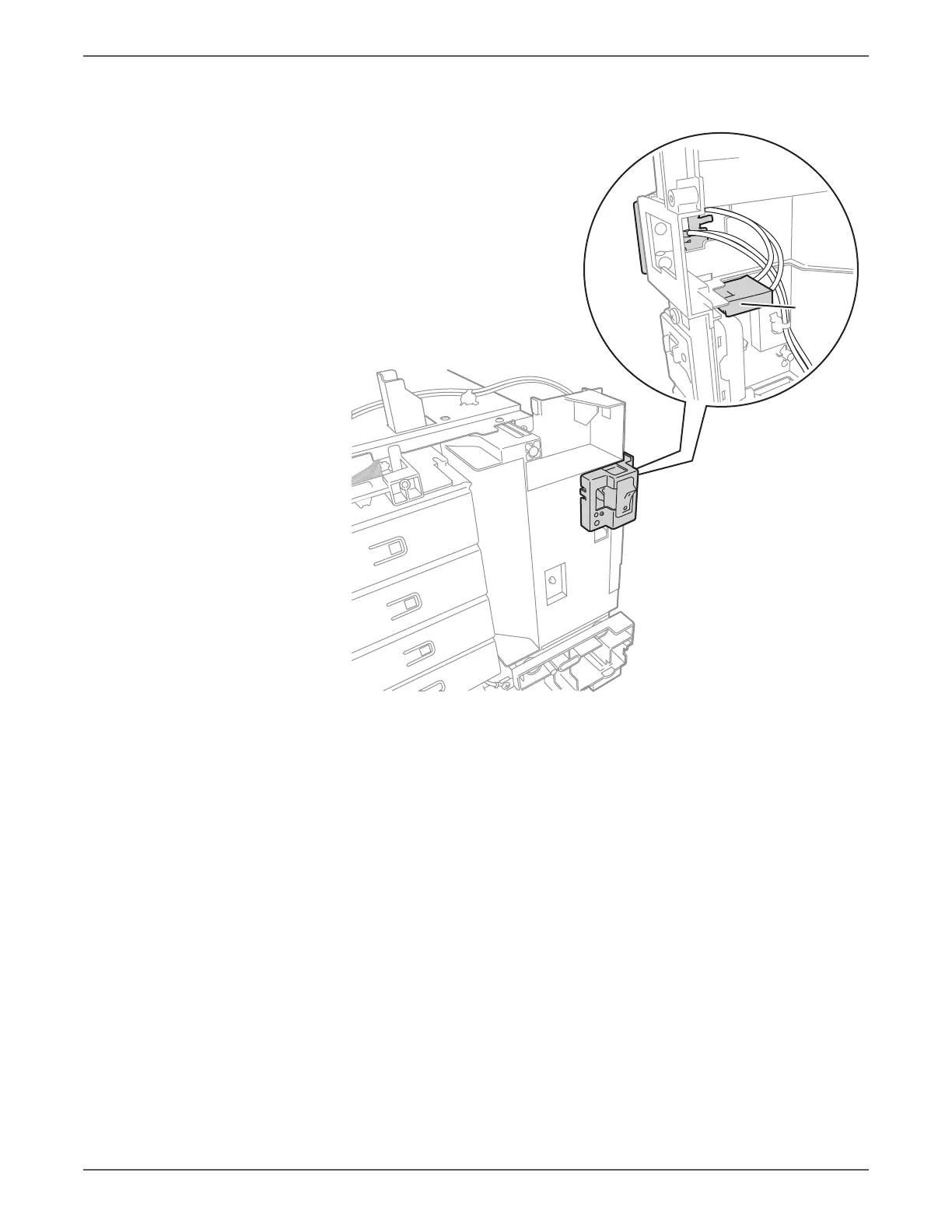

9. Disconnect P/J482 on the GFI Breaker (PL10.7.10).
10. Release 1 screw that secures the Power Switch Bracket to the Breaker
Assembly.
11. Release the Power Switch hooks from the bracket to remove the Power Switch
Harness from the chassis.
s6128mfp-213
P/J482
