Xerox Phaser 6128MFP Service Manual

5-8 Phaser 6128MFP Service Manual
Print-Quality Troubleshooting
Light or Undertone Print
The overall image density is too light in all colors.
Initial Actions
• Check the Imaging Unit life counter.
• Set the print mode to Enhanced.
• Check for obstructions or debris in the beam path between the Laser and the
Imaging Units.
• Check the media settings at the Control Panel.
Troubleshooting Reference Table

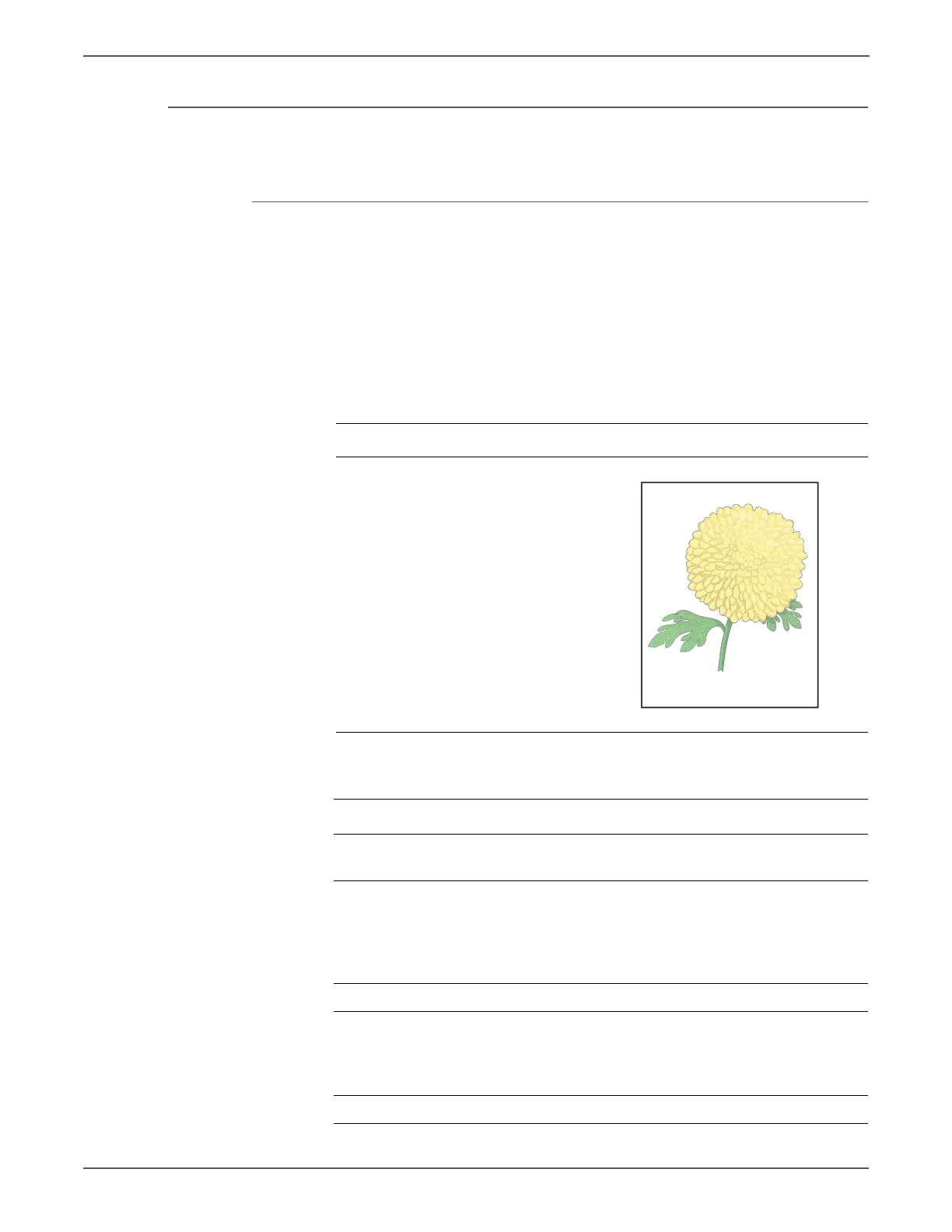

Applicable Parts Example Print
■ Laser Unit kit(PL4.1.99)
■ Imaging Unit (PL4.1.21)
■ Dispense Assy (PL5.1.3)
■ Toner Cartridge K (PL5.1.21)
■ Toner Cartridge C (PL5.1.22)
■ Toner Cartridge M (PL5.1.23)
■ Toner Cartridge Y (PL5.1.24)
■ Transfer Belt (PL6.1.7)
■ IP Board (PL10.6.6)
■ MCU Board (PL10.7.7)
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the toner type.
Are the cartridges genuine Xerox?
Go to step 2. Replace with
Xerox toner.
2 Check the media condition.
Is the media the recommended
type?
Go to step 4. Replace the
media with a
recommended
one, then go to
step 3.
3 Is the image printed correctly? Complete Go to step 4.
4 Check the print mode.
Is the Standard Mode selected?
Select
Enhanced
Mode, then go
to step 5.
Go to step 6.
5 Is the image printed correctly? Complete Go to step6.
Light or Undertone Print

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
