Xerox Phaser 6128MFP - Right Imaging Unit Restraint Block

Phaser 6128MFP Service Manual 8-87
Service Parts Disassembly
Right Imaging Unit Restraint Block
(PL4.1.97)
Note
The following procedure applies to both the upper and lower Right Imaging
Unit Restraint Blocks.
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Remove the Right Side Cover (page 8-23).
5. Remove the Erase LED Assembly (page 8-86).

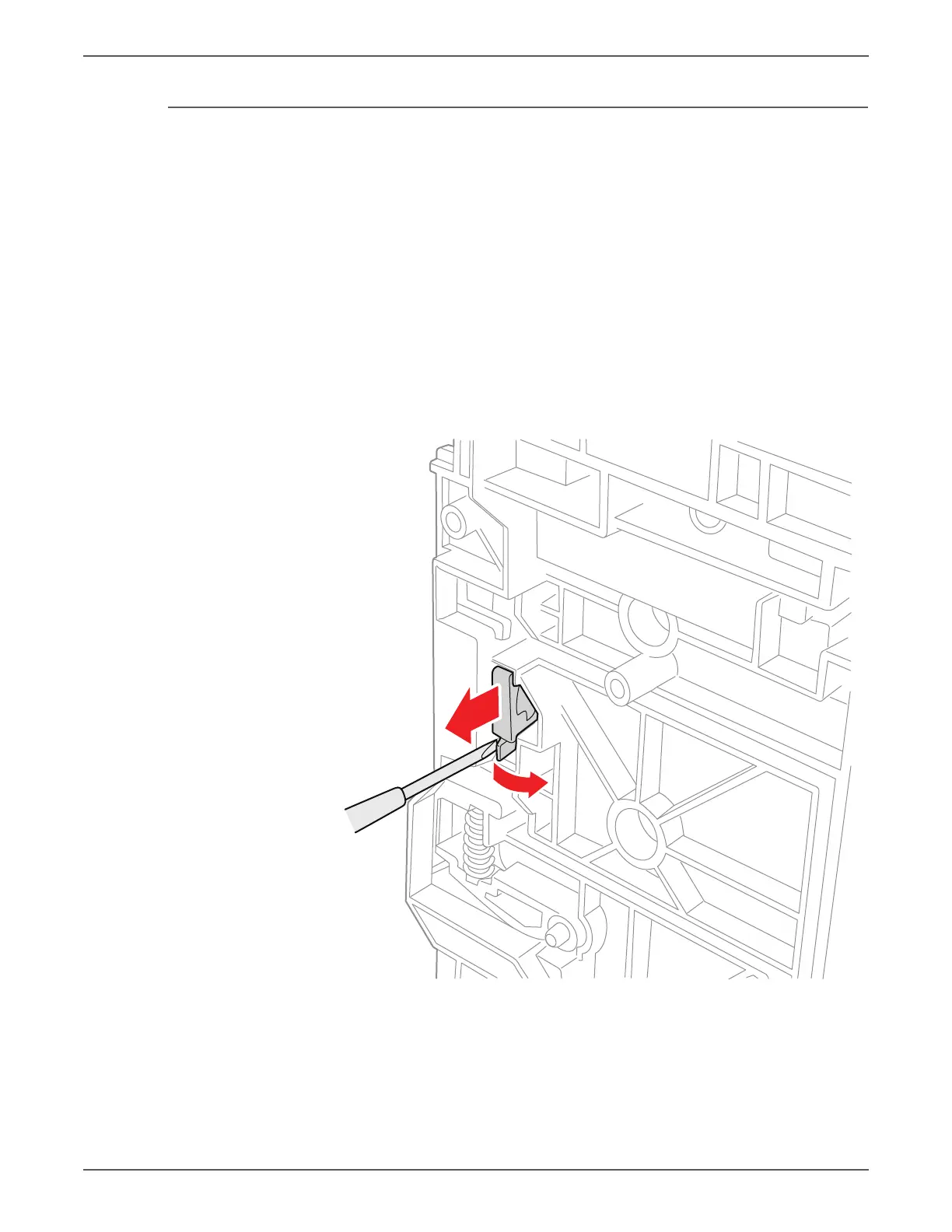

6. Use a miniature screwdriver to release the hook on the Imaging Unit Restraint
Block.
7. Remove the Imaging Unit Restraint Block from the printer.
s6128mfp-286
