Xerox Phaser 6128MFP - Feeder Assembly

Phaser 6128MFP Service Manual 8-75
Service Parts Disassembly
Feeder Assembly
PL10.4.3
1. Remove the Upper Frame Assembly (page 8-68).
2. Remove the HVPS (page 8-54).

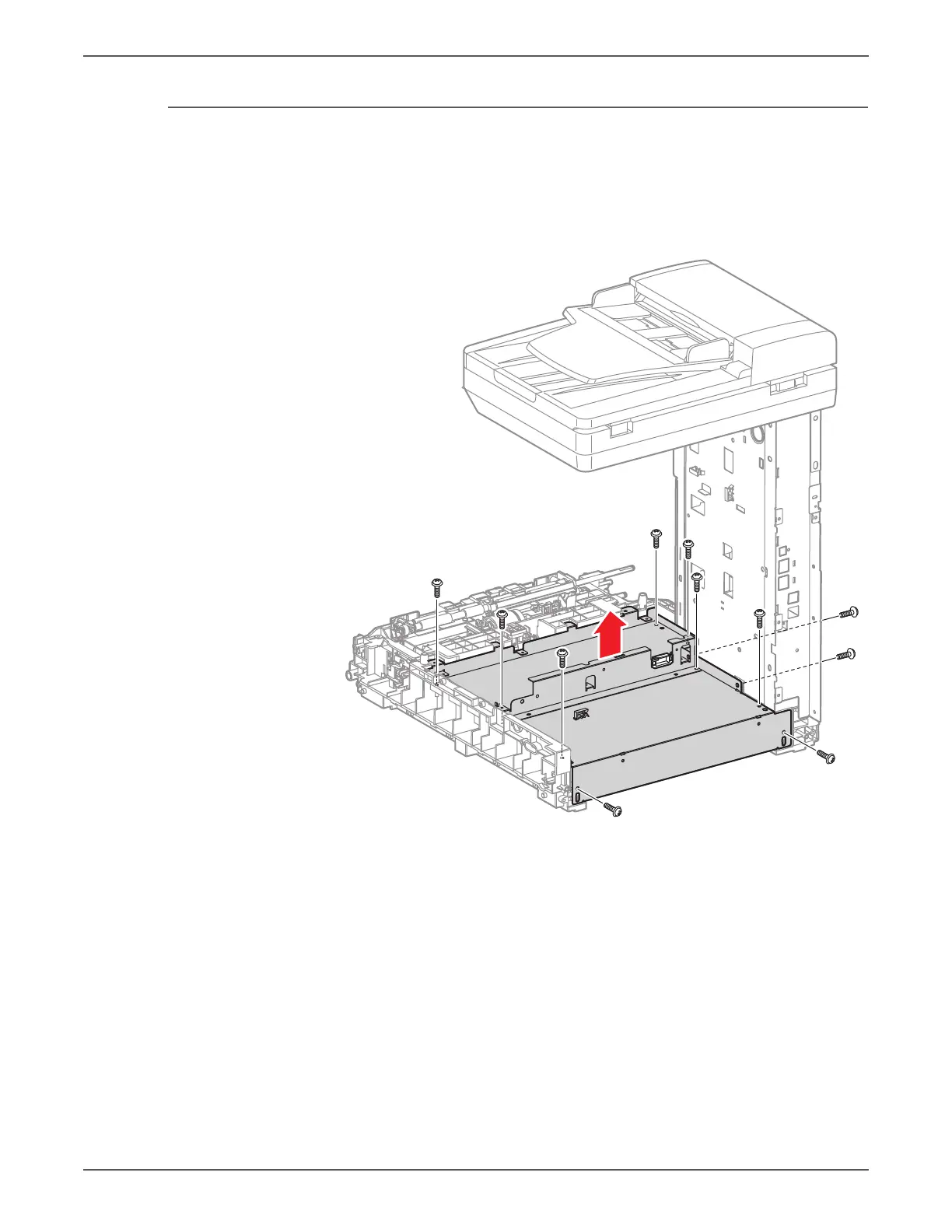

3. Remove the 11 screws theat secure the HVPS chassis to the Feeder Assembly.
s6128mfp-329
