8-74 Phaser 6128MFP Service Manual
Service Parts Disassembly

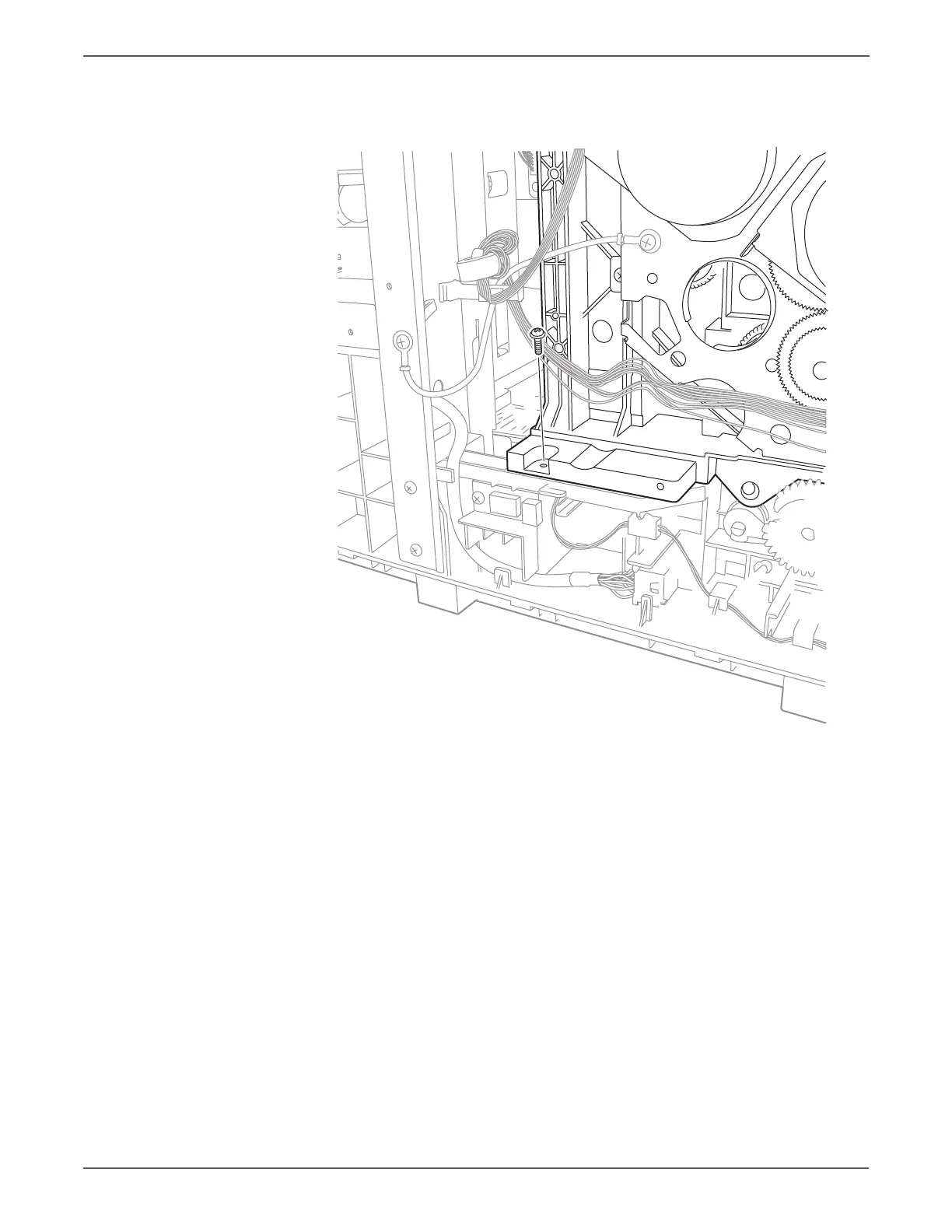

25. Remove 1 screw (silver, tap, 8mm) that fixes the left side of the upper frame.
26. Lift the upper frame from the chassis.
Removal of the Laser Unit from the Upper Frame Assembly simplifys the
task of lacing the harnesses around the Dispense Assembly.
To Next Page
