Xerox Phaser 6128MFP - Top Cover

Phaser 6128MFP Service Manual 8-25
Service Parts Disassembly
Top Cover
PL10.1.4
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).

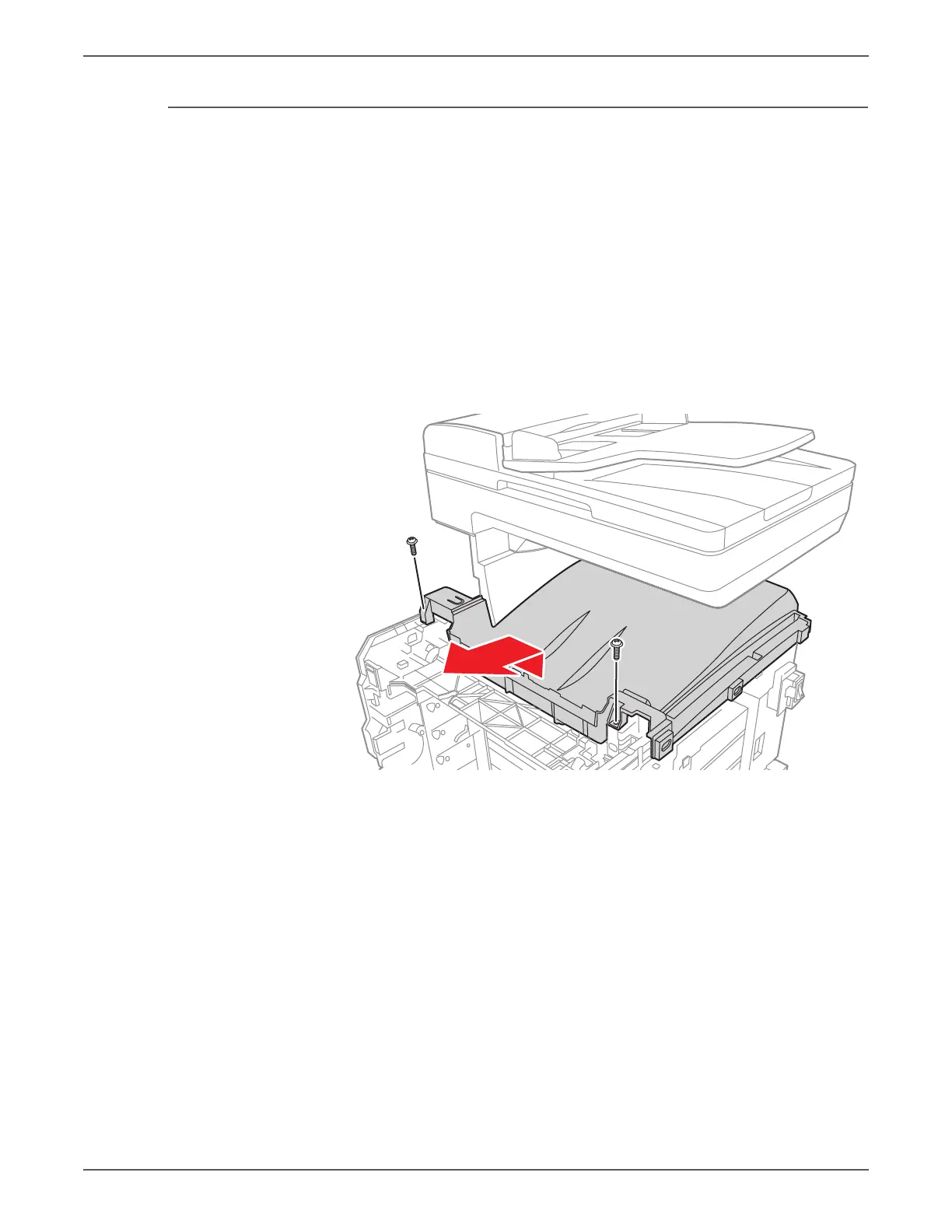

6. Remove the two screws (silver, tap, 8mm) that secure the Top Cover to the
chassis.
7. Lift the front of the Top Cover to release the cover from the 2 bosses and
remove.
s6128mfp-253
