Phaser 6128MFP Service Manual 8-17
Service Parts Disassembly
Left Side Cover
PL 10.1.10
1. Open the Front Cover.

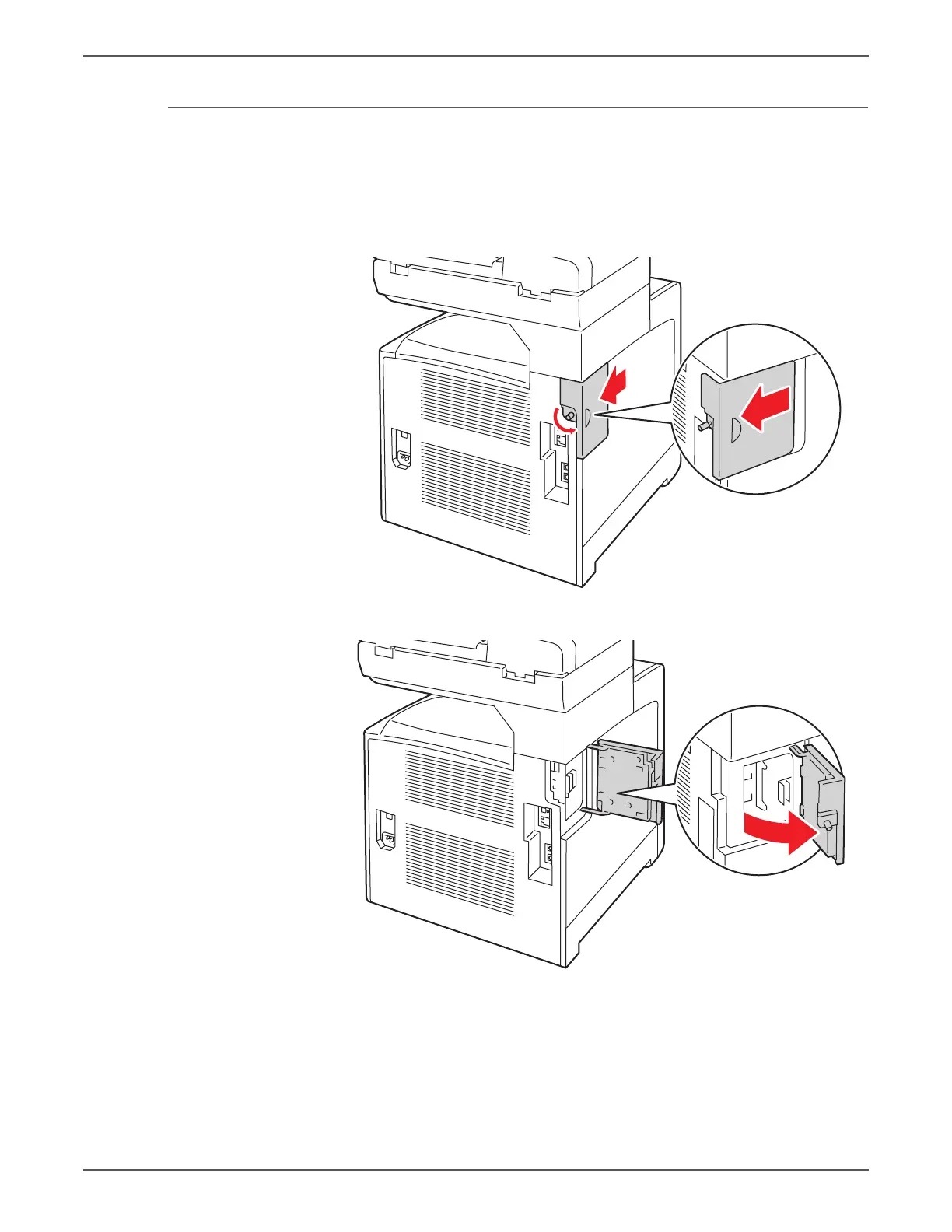

2. Loosen the captive screw that secures the ESS Cover. Gently pull the cover
back and swing the cover open.
s6128mfp-188
s6128mfp-189
