Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 4-55
General Troubleshooting
simultaneously accommodates analog (voice) and digital information on the
same line. Downstream data rates are offered from 512 Kbps to about 6
Mbps.
• SDSL (Symmetric Digital Subscriber Line) – Runs over one pair of copper wires
with symmetrical upstream and downstream transmission speeds up to 3
Mbps, with a maximum range up to 3 km.
• VDSL (Very high Bit Rate Digital Subscriber Line) – An xDSL technology that
provides faster data transmission over a single twisted pair of copper wires.
VDSL transmits data from 13 Mbps ~ 55 Mbps range over short distances,
usually between 1000 and 4500 feet.
Noise
If electronic equipment (television, computer, microwave, etc.) or devices equipped
with motors are located near a Fax, noise from the electronic equipment may
degrade the line condition.
Also, a telephone line, acting as an antenna, may absorb electric waves generated
from wireless or broadcasting equipment.
Because Fax data is audio data, the line quality affects the quality/stability of
image data as well as that of conversation.
Fax Failure After Installation/Relocation
The Fax has failed to send after installation. The following troubleshooting
procedure applies to this error.
Initial Actions
• Disconnect all devices other than the Fax machine.
• Cycle printer power.
• If the problem persists, follow the procedure below.

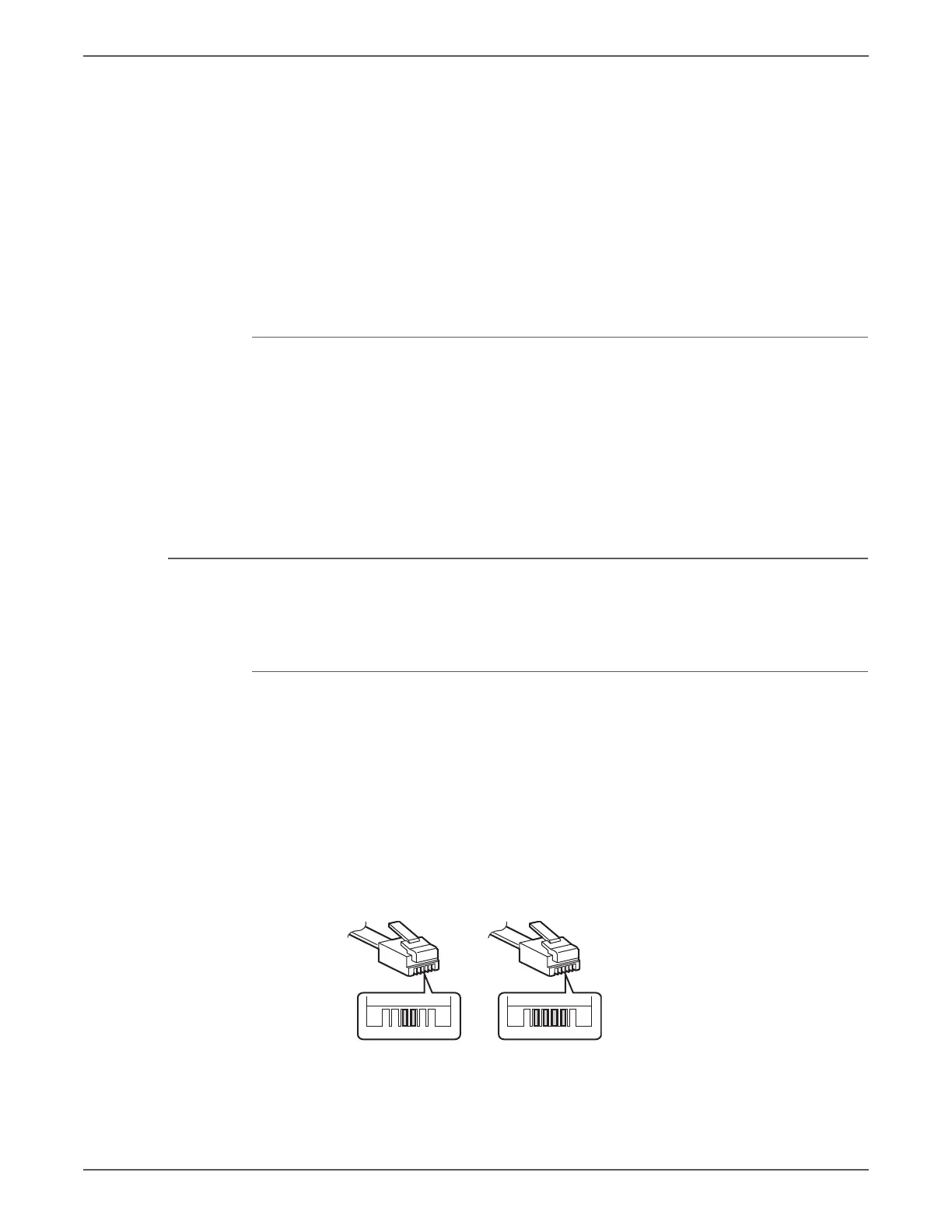

The conventional analog telephone line uses standard RJ-11 cable, which has two
conductors. However, the four-conductor cables commonly available are backward
compatible with RJ-11 and can be used with no problems. On the other hand, since
these four-conductor cables are also used for ISDN systems, the number of
elements is not the key for identification of the type of line/service.
PSTN PBX
s6128mfp-092

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
