Phaser 6128MFP Service Manual 8-41
Service Parts Disassembly
Electrical
Image Processor Board
PL10.6.6
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the ESS Shield (page 8-46).
6. Remove the FAX Board (page 8-47).

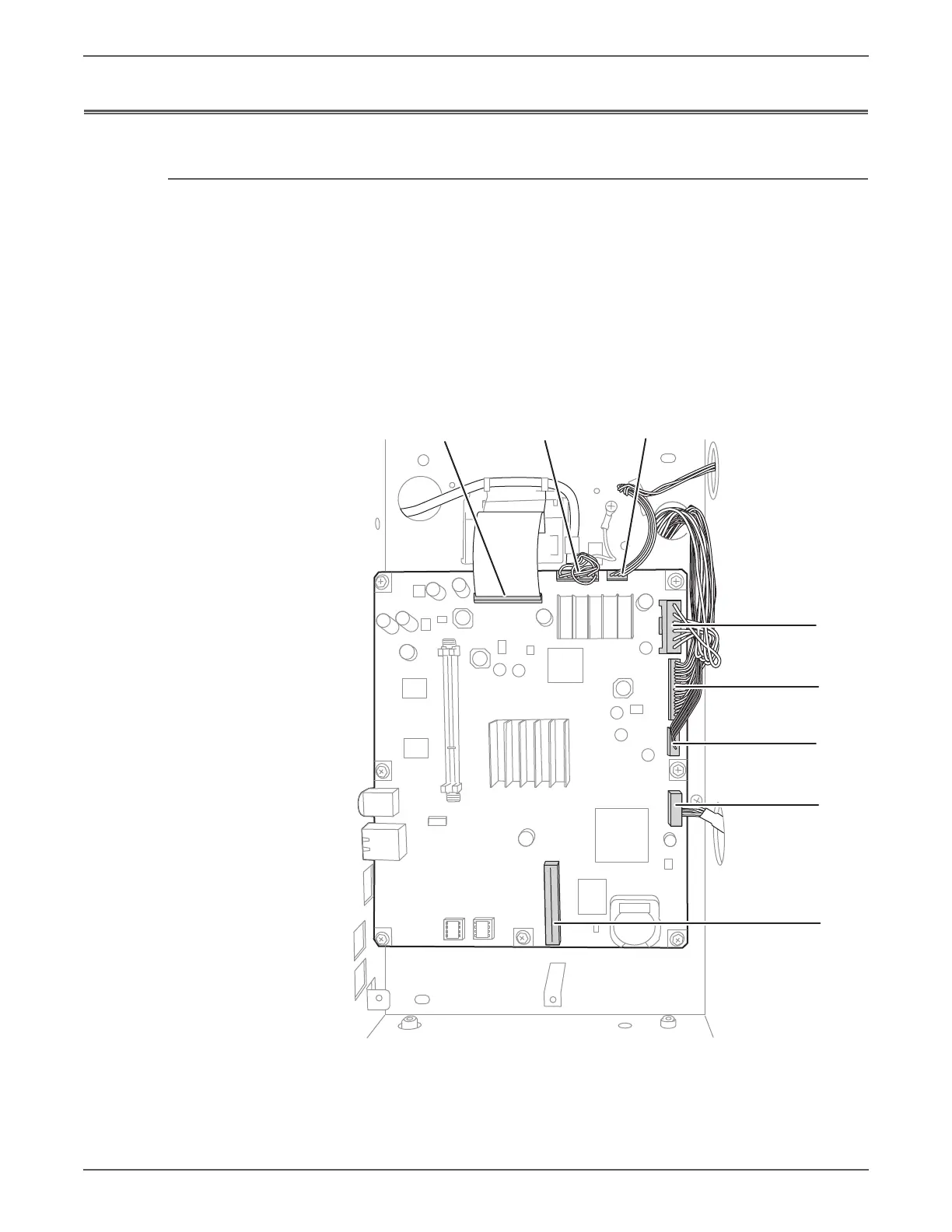

7. Disconnect all connections from the Image Processor Board.
s6128mfp-203
P403
P802
J1001
J801
P1003 P1002
P902
P901
To Next Page
