8-42 Phaser 6128MFP Service Manual
Service Parts Disassembly

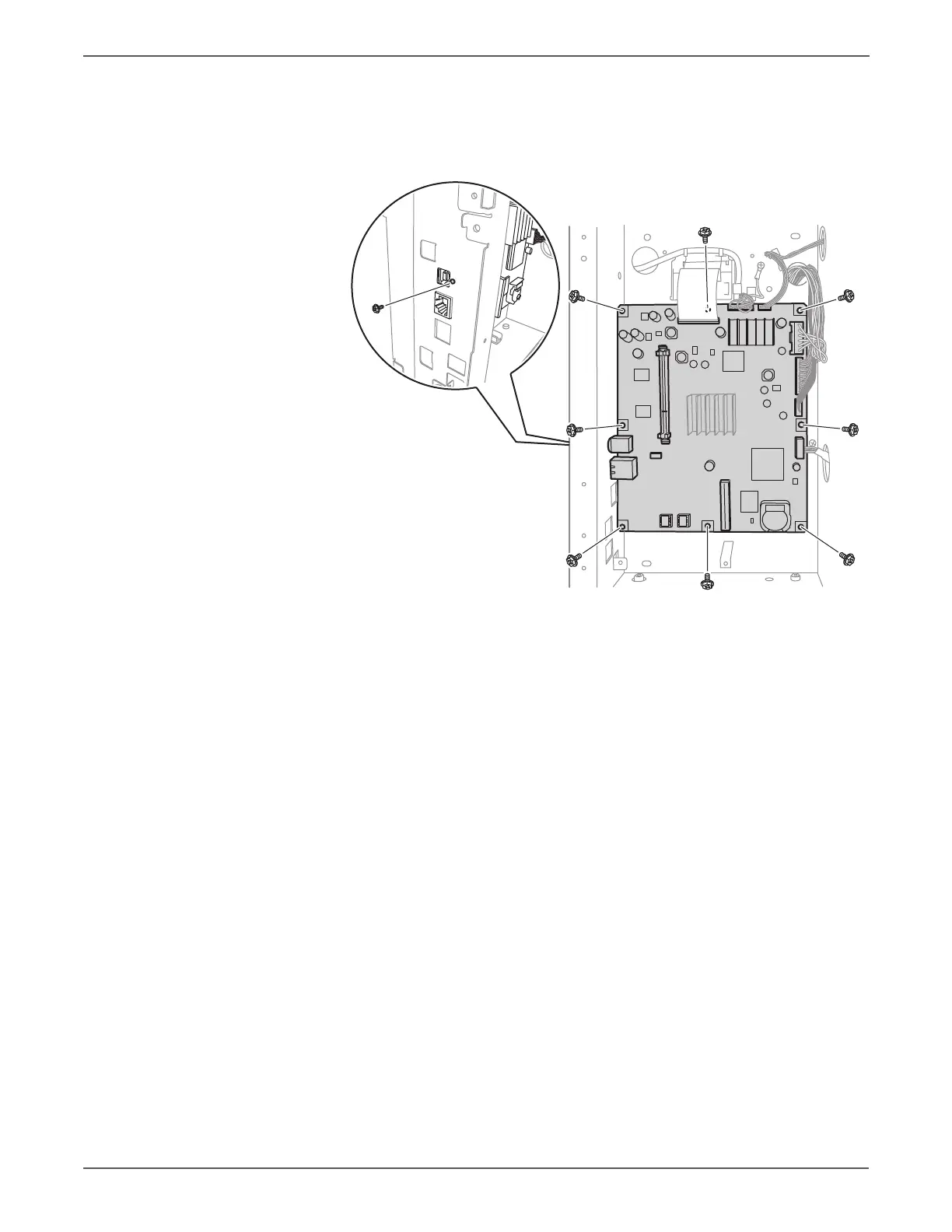

8. Remove the 8 screws (silver, with flange, 6mm) that secure the board to the
chassis.
9. Remove the one screw (silver, 6mm) that secures the USB connector to the
Card Cage and remove the board.
