Phaser 6128MFP Service Manual 8-15
Service Parts Disassembly
Covers
Front Cover
PL10.2.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Remove the Right Side Cover (page 8-23).
5. Close the Front Cover.

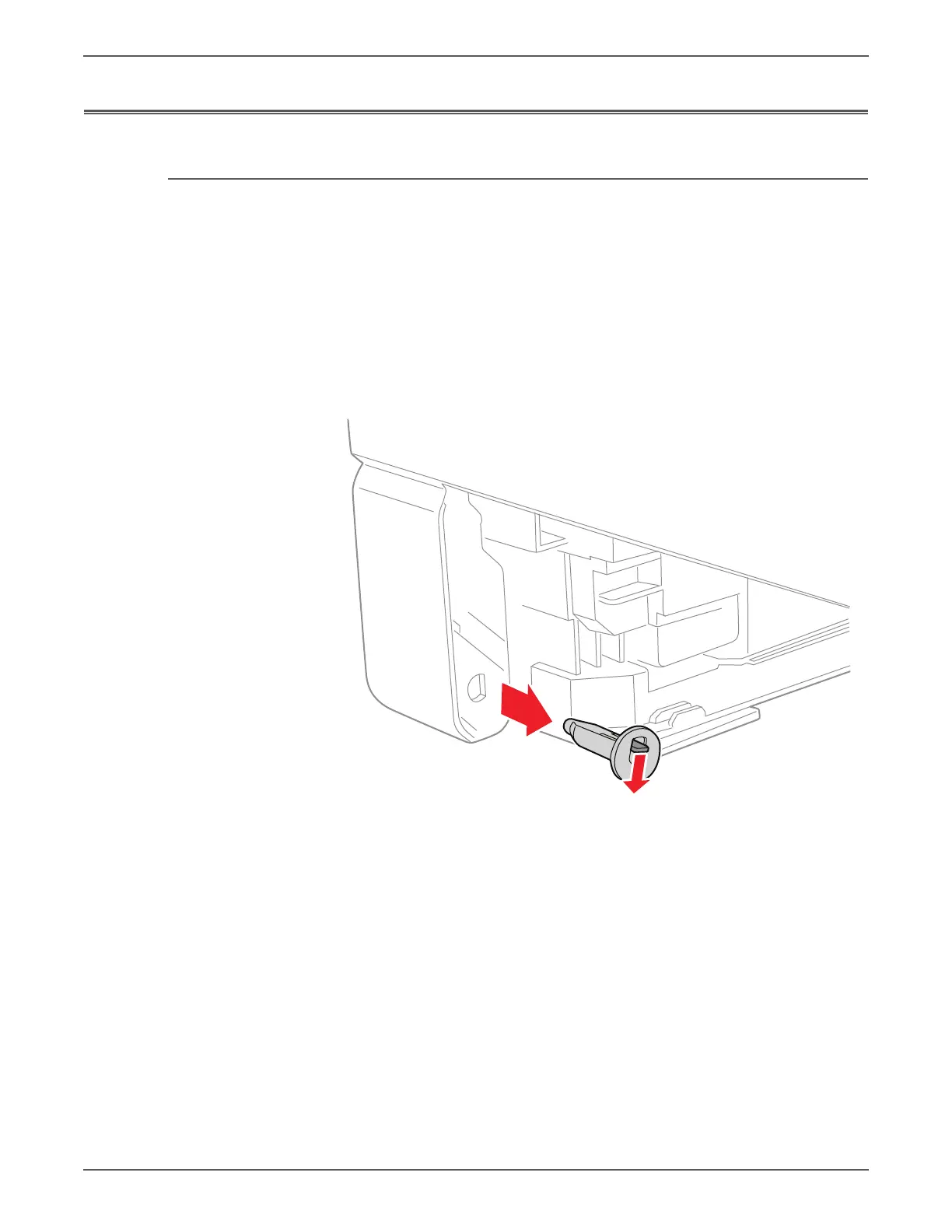

6. Release the Pivot Shaft hook and pull the Left and Right Pivot Shafts out of
the Front Cover.
s6128mfp-308
1
2
To Next Page
