Phaser 6128MFP Service Manual 8-37
Service Parts Disassembly

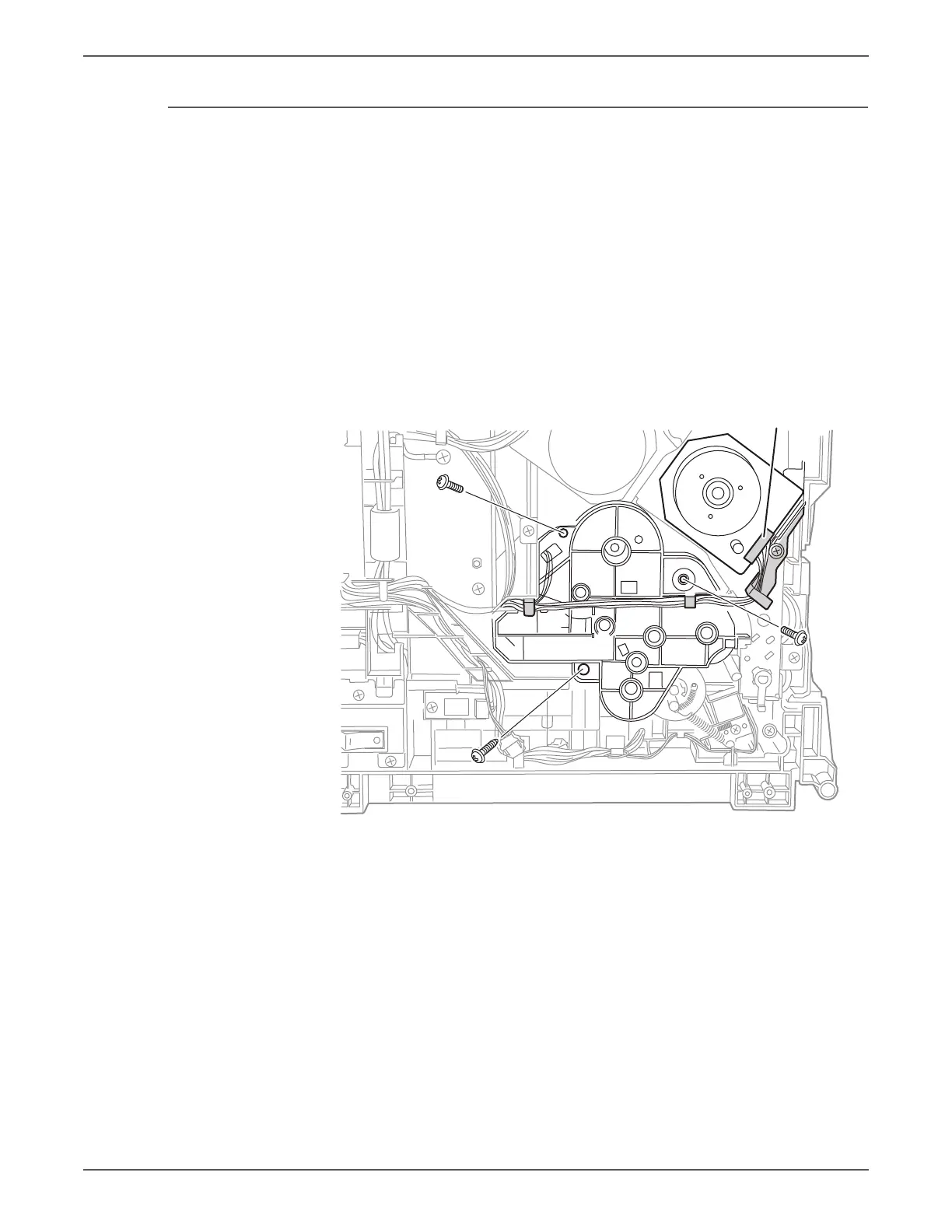

Feed Drive Assembly
PL7.1.4
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Drive Clutch and Bearing Kit (page 8-35).
8. Remove the LVPS Card Cage (page 8-66).
9. Disconnect P/J211 of the Main Drive Assembly (PL7.1.2) and release all the
harnesses from the hooks on the Feed Drive Assembly.
6mm
M4
Tap, 8mm
6mm
M3
P/J211
s6128mfp-282
To Next Page
