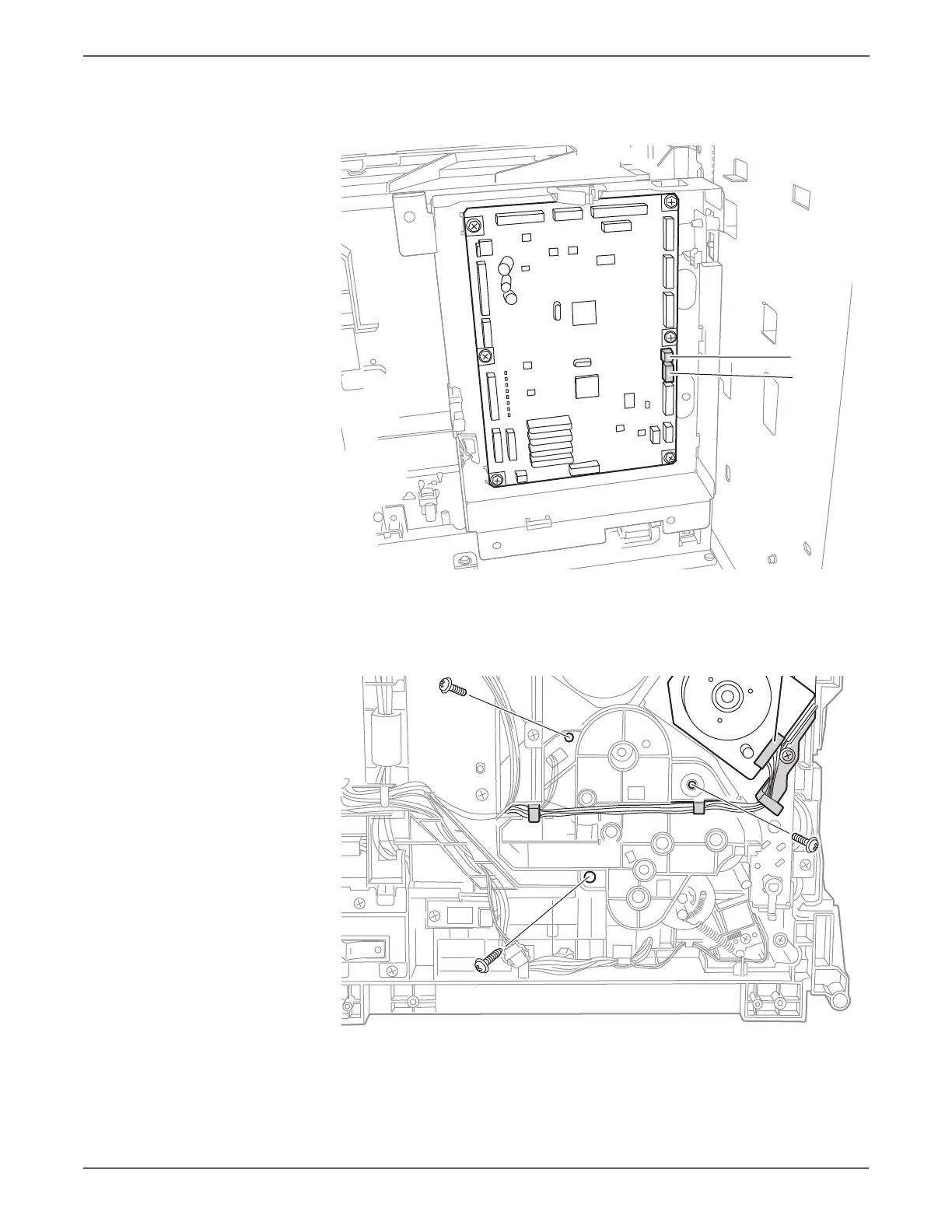

10. Disconnect P/J24 and P/J26 on the MCU Board.
11. Release the harnesses from the locking clamp and pull the harness out from
the hole in the chassis.
12. Remove the three screws (one silver, M4, 6mm; one silver, M3, 6mm; one silver,
tap, 8mm) that attach the Feed Drive Assembly to the printer.
When performing the next step, make sure the coupling gear remains on
the shaft of the Feed Drive Assembly. Take care not to drop the gear.
s6128mfp-316
P/J26
P/J24
s6128mfp-154
6mm
M4
Tap, 8mm
6mm
M3
To Next Page
