8-28 Phaser 6128MFP Service Manual
Service Parts Disassembly
Manual Feed Sensor Actuator
PL3.2.14
To help prevent damage to the Transfer Belt while removing the sensor, place
a sheet of paper on the Transfer Belt.
1. Open the Front Cover.
2. Remove the Imaging Unit (page 8-8).

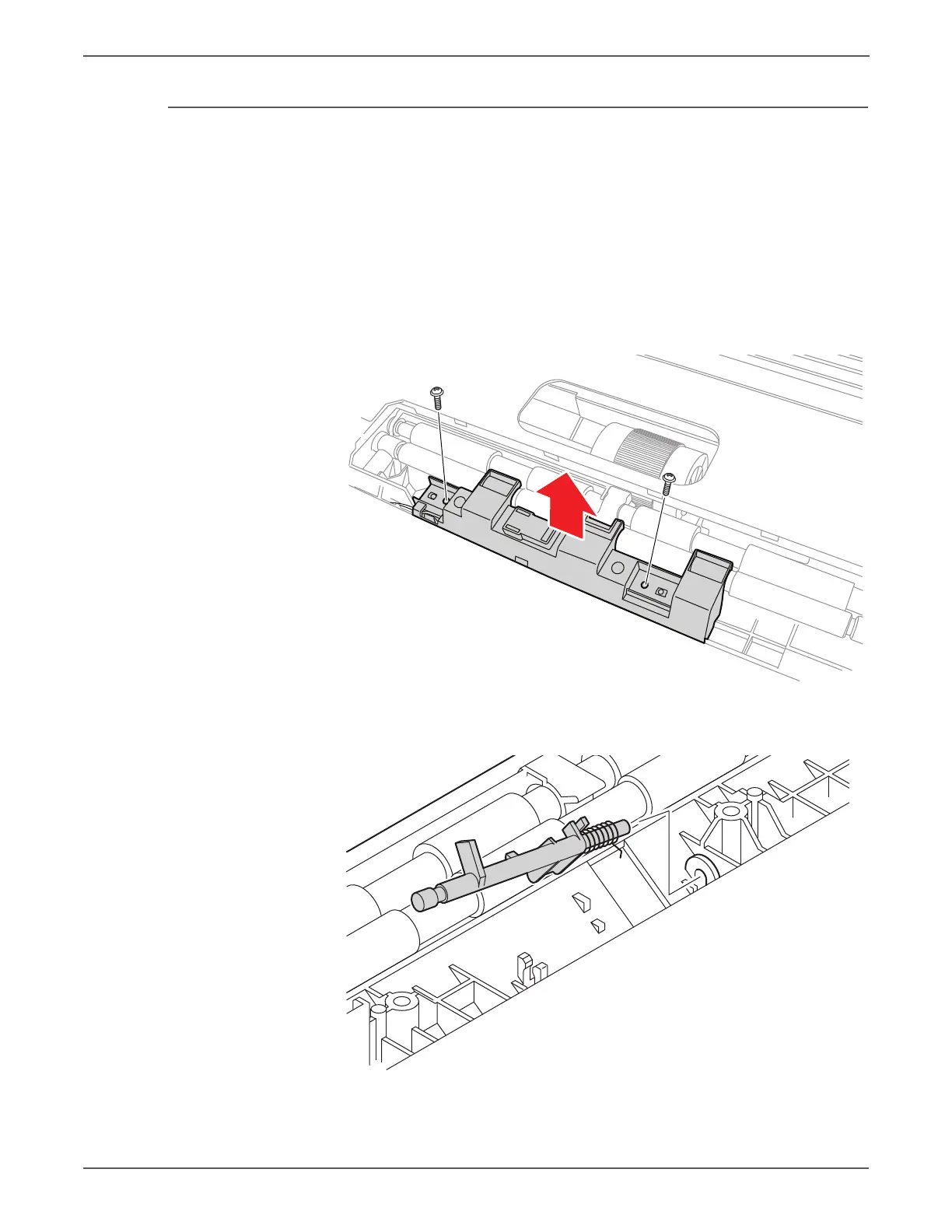

3. Remove 2 screws (silver, tap, 8mm) that secure the sensor bracket, and lift the
bracket from the printer.
4. Remove the actuator and spring (PL3.2.15) by removing the right end of the
shaft from the hole in the chute.
Note the orientation of the spring on the acutator.
