Xerox Phaser 6128MFP - IIT Procedures; ADF Feed Roll Assembly

Phaser 6128MFP Service Manual 8-77
Service Parts Disassembly
IIT Procedures
ADF Feed Roll Assembly
PL 10.10.3

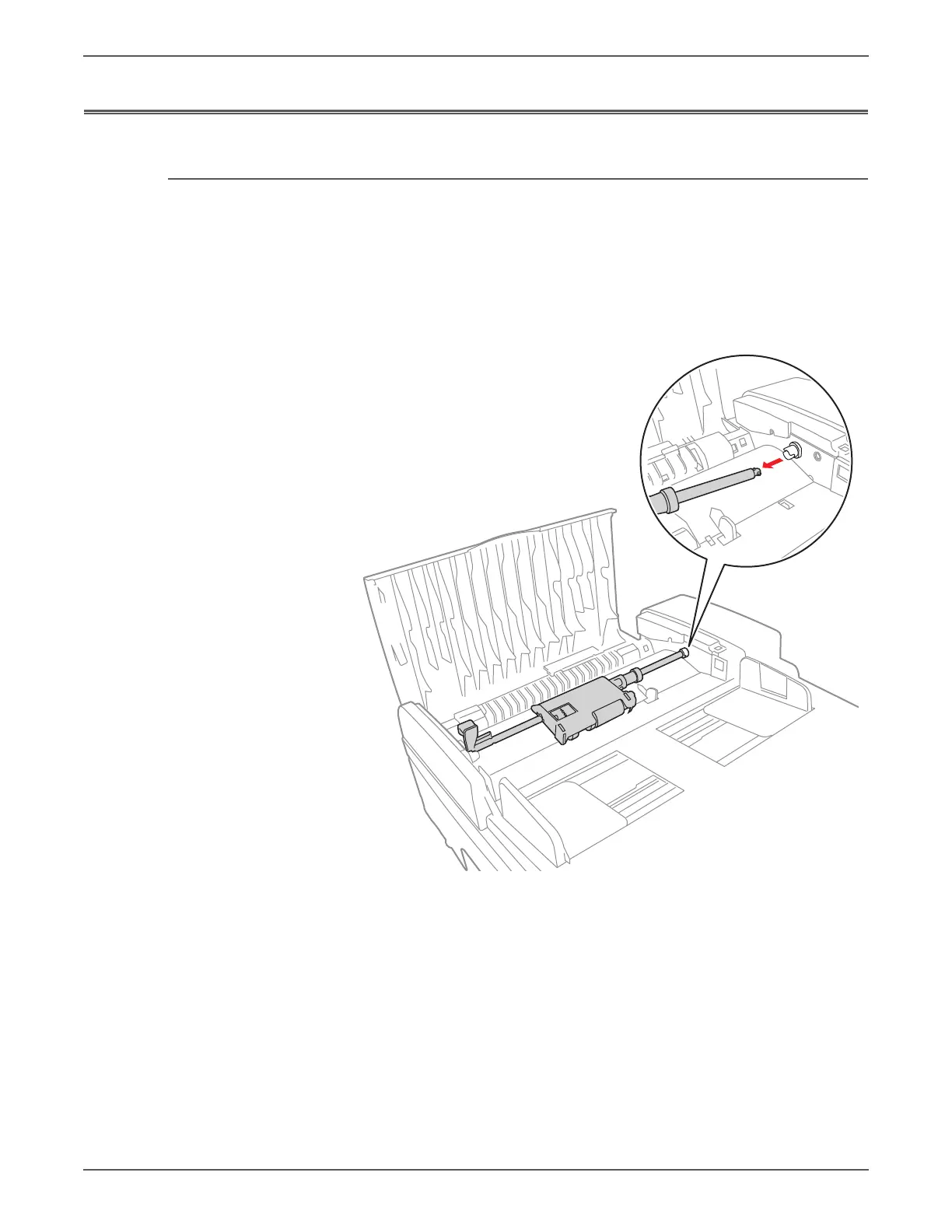

1. Open the ADF Jam Cover.
2. Raise the release lever 90 degrees.
3. Lift the Roll Assembly by the lever and remove the back end of the shaft from
the ADF.
s6128mfp-258
