8-76 Phaser 6128MFP Service Manual
Service Parts Disassembly

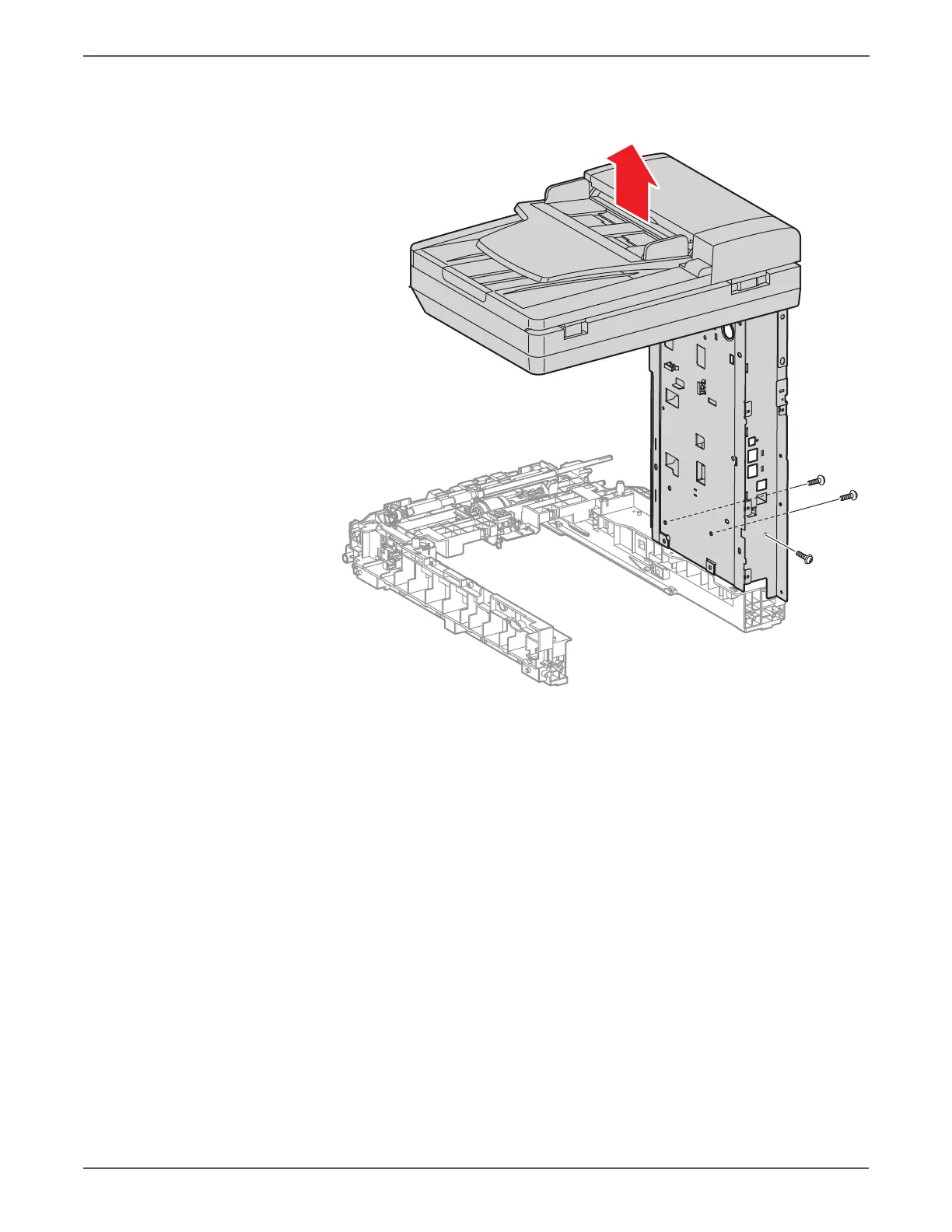

4. Remove 3 screws that secure the scanner frame assembly, then lift the
assembly from the Feeder Assembly.
While replacing the Feeder Assembly, transfer components mounted to
the old assembly to the new assembly.
