Phaser 6128MFP Service Manual 8-103
Service Parts Disassembly
Transfer Belt
PL 6.1.7
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Remove the Right Side Cover (page 8-23).
5. Remove the Front Cover (page 8-15).

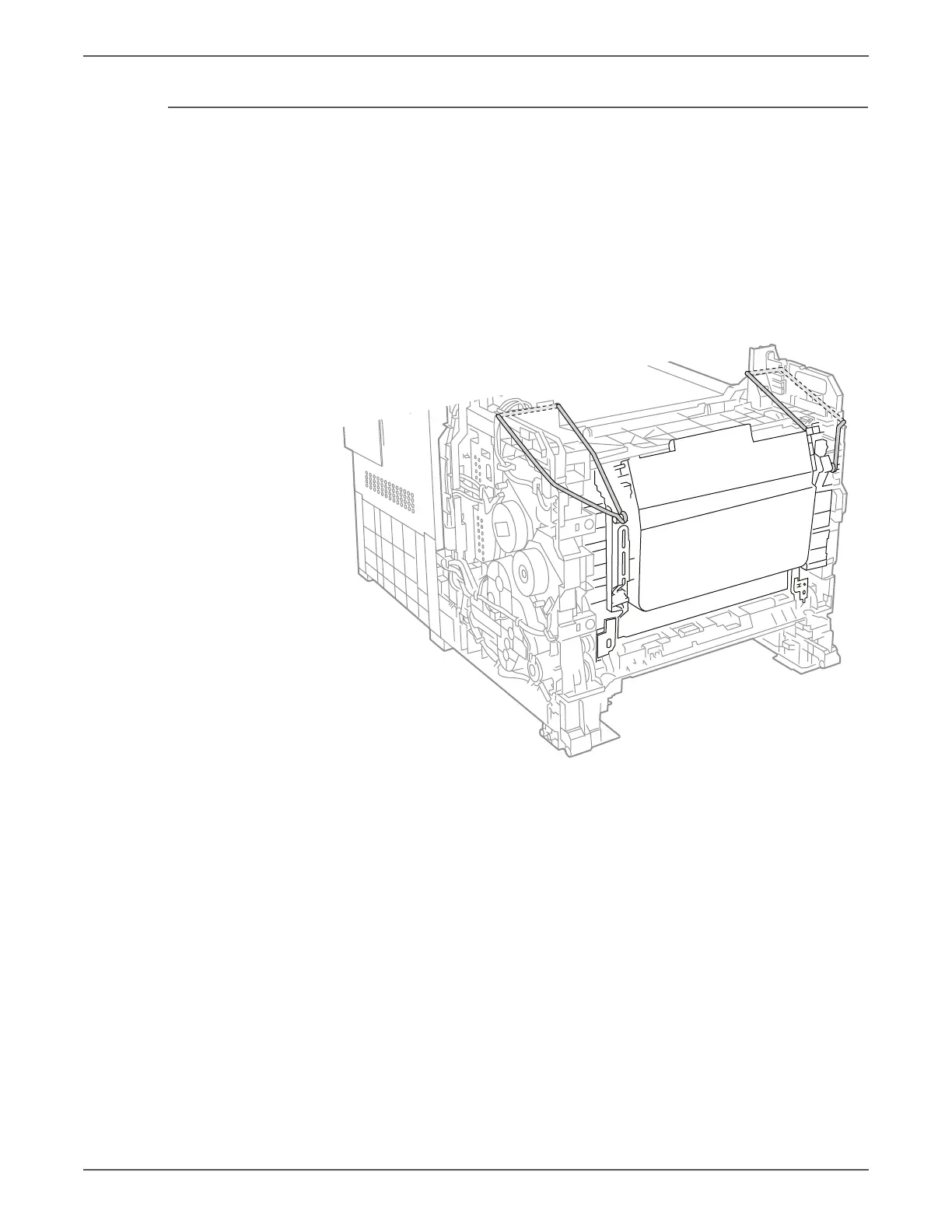

6. Secure the Transfer Belt to the chassis using rubber bands to hold it upright.
When performing the next step, take care not to scratch the surface of the
Transfer Belt.
7. Use a miniature screwdriver to release the Harness 2 Cover hook, then remove
the Harness 2 Cover.
When performing the next step, leave the relay connector on the Transfer
Belt harness side.
8. Release the harness from the pegs of the Transfer Belt, then unplug the
Transfer Belt connector (P/J281).
9. Release the harness coming from printer from hook of the Transfer Belt.
To Next Page
