8-102 Phaser 6128MFP Service Manual
Service Parts Disassembly

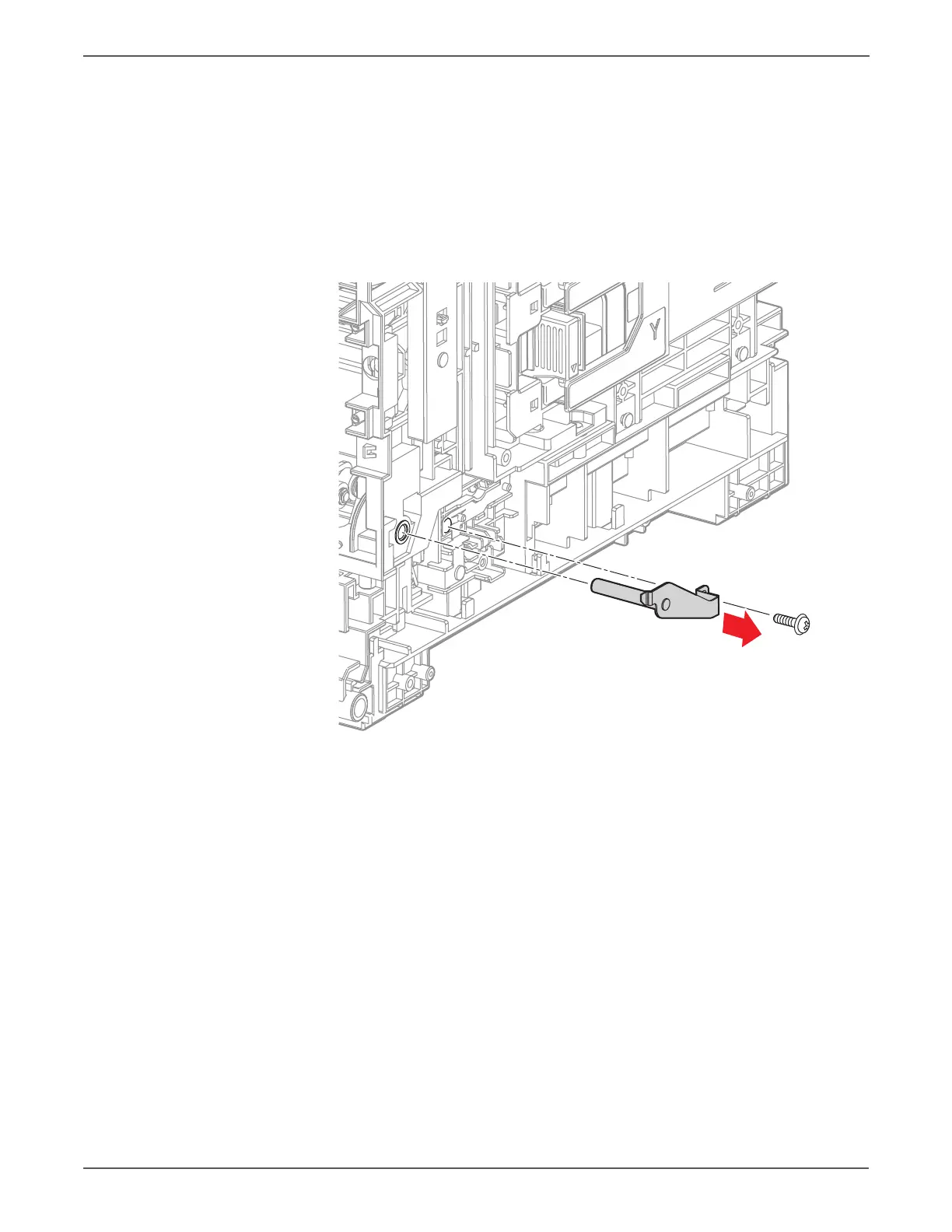

11. Remove the screw (silver, tap, 8mm) that attaches the Right Side Pivot Shaft
to the printer.
When performing the next step, keep the Transfer Belt slightly lifted to
ease removal of the Pivot Shaft. If you are performing this procedure as
part of the Transfer Belt removal, the only step remaining after removing
the Right Pivot Shaft is to lift the Transfer Belt out of the printer.
12. Pull the Pivot Shaft out of the printer.
