8-18 Phaser 6128MFP Service Manual
Service Parts Disassembly

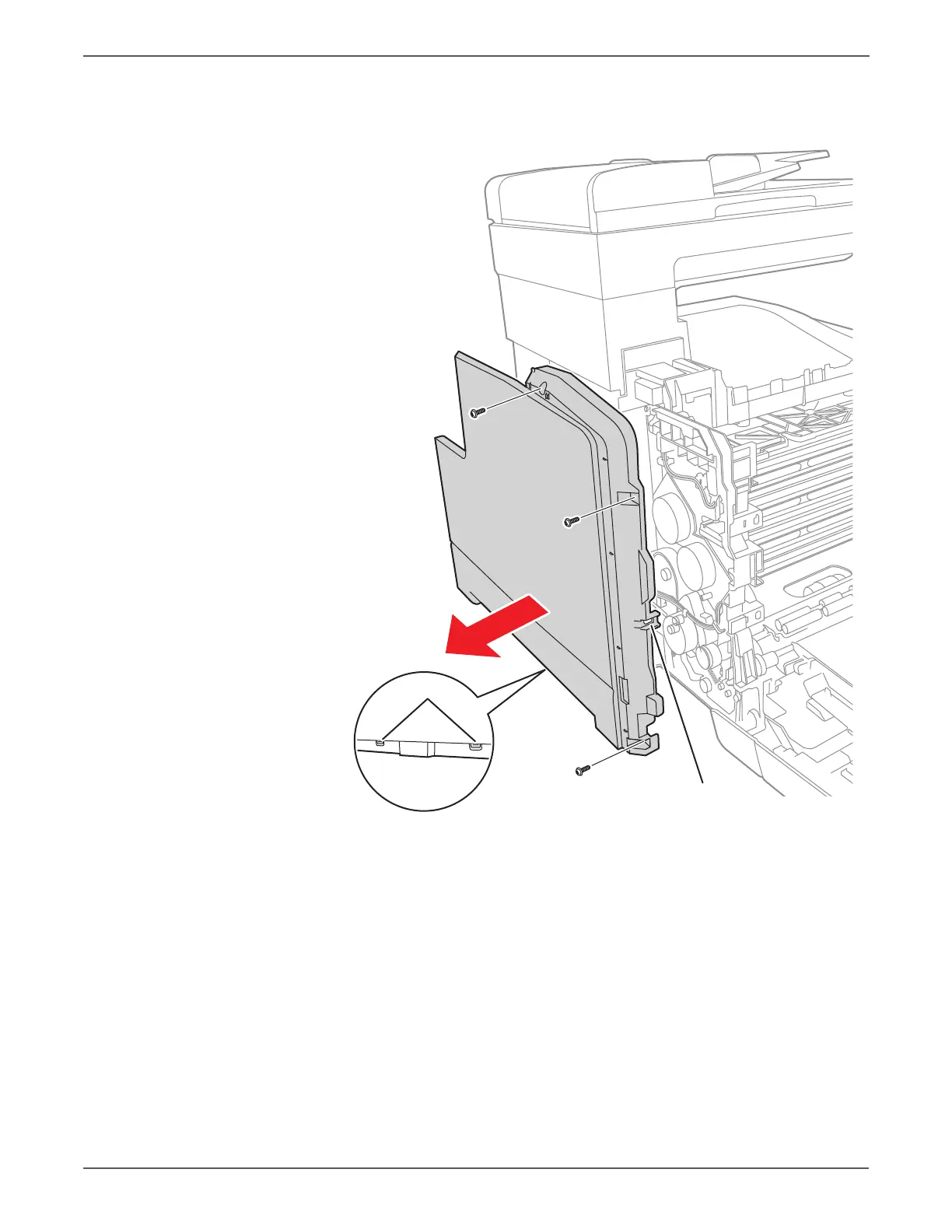

3. Remove the 3 screws (silver, tap, 8mm) and release the 3 hooks that secure
the Left Side Cover.
s6128mfp-190
Hooks
Hook
