Phaser 6128MFP Service Manual 8-73
Service Parts Disassembly

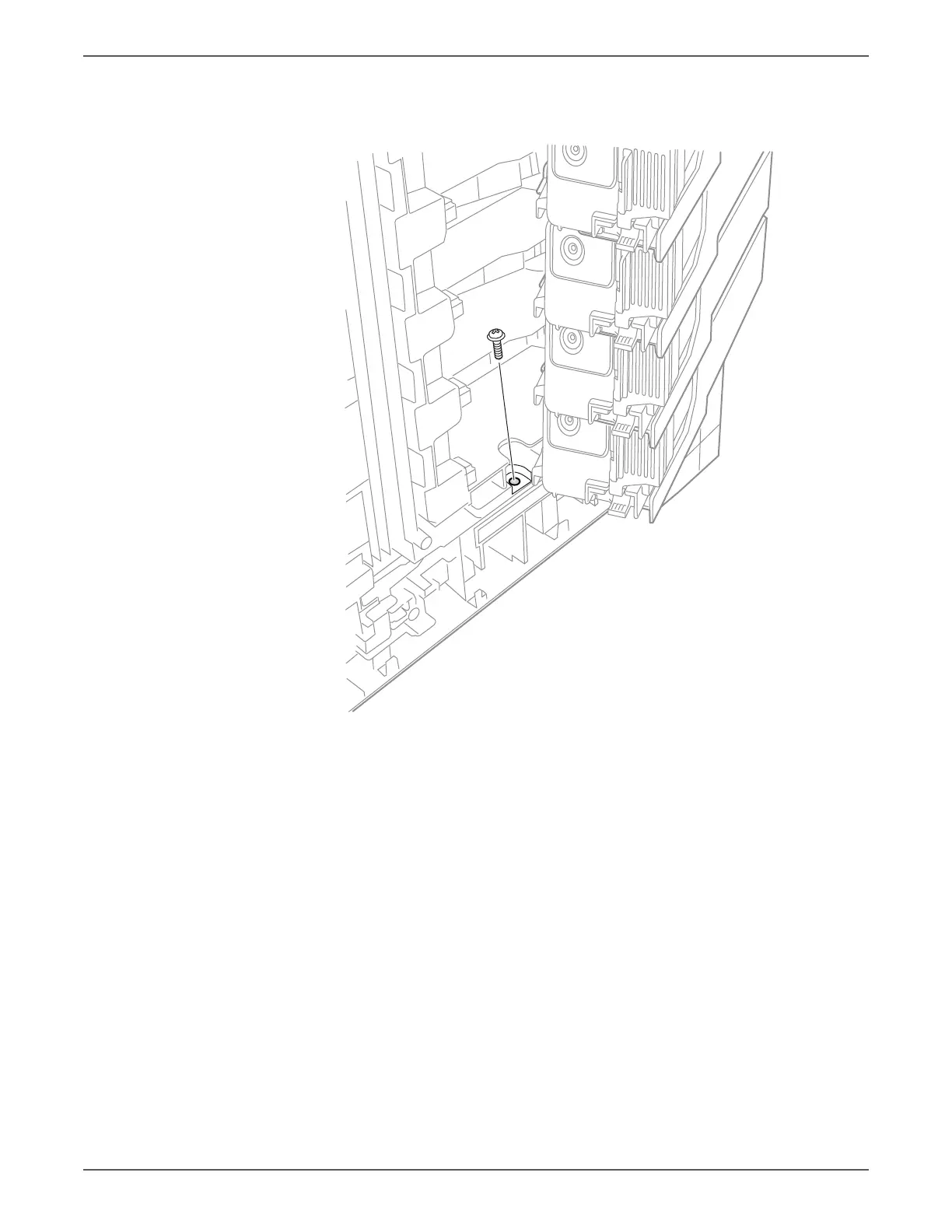

24. Open the Toner Cartridge Holders and remove 1 screw (silver, tap, 8mm) that
secures the right side of the frame.
s6128mfp-249
