8-92 Phaser 6128MFP Service Manual
Service Parts Disassembly

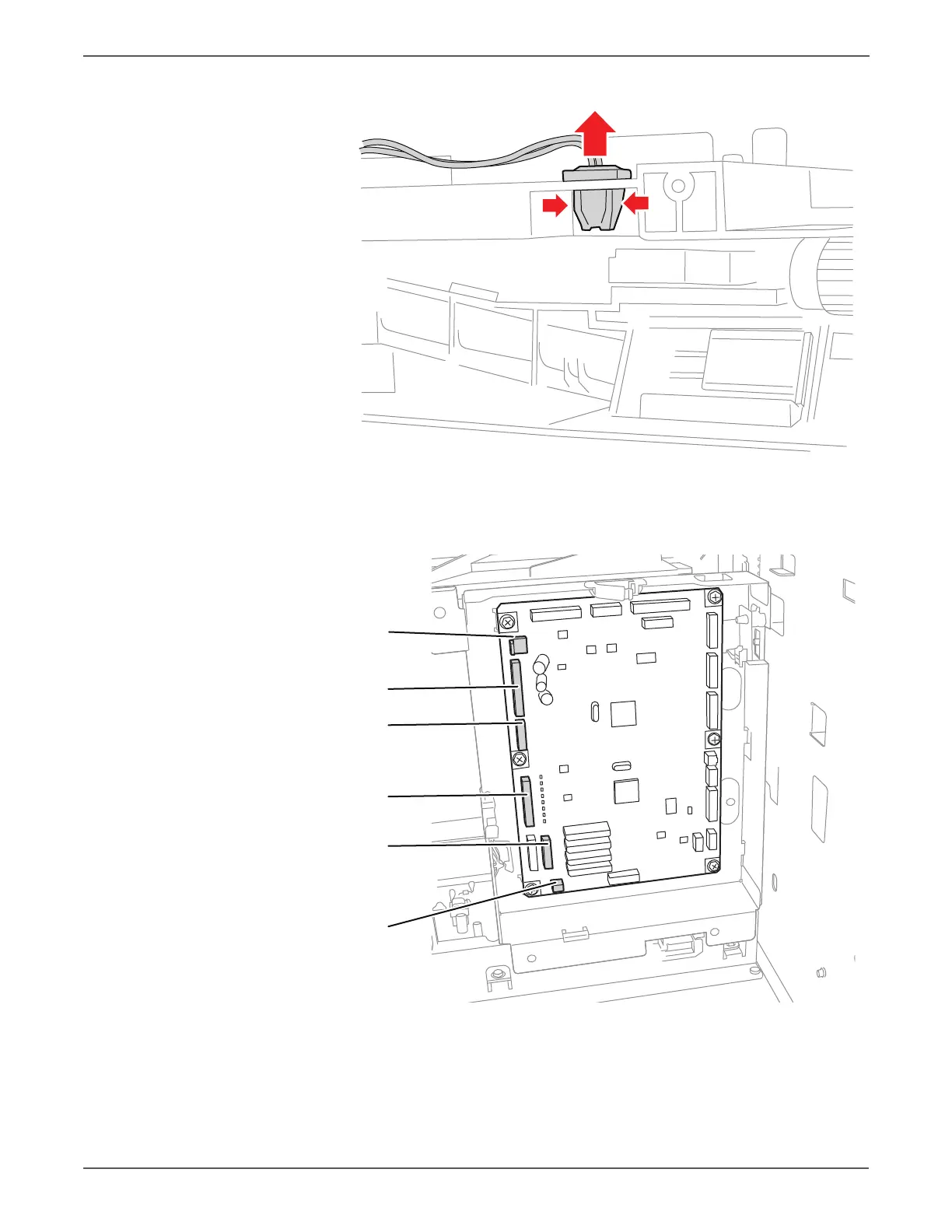

15. Disconnect 7 connectors (P/J14, 15, 17, 18, 19, 29, 31) on the MCU Board,
then release the Fuser and LVPS main harnesses from the hooks on the
Dispense Assembly.
s6128mfp-293
P/J15
P/J14
P/J17
P/J31
P/J18
P/J29
To Next Page
