Phaser 6128MFP Service Manual 8-89
Service Parts Disassembly

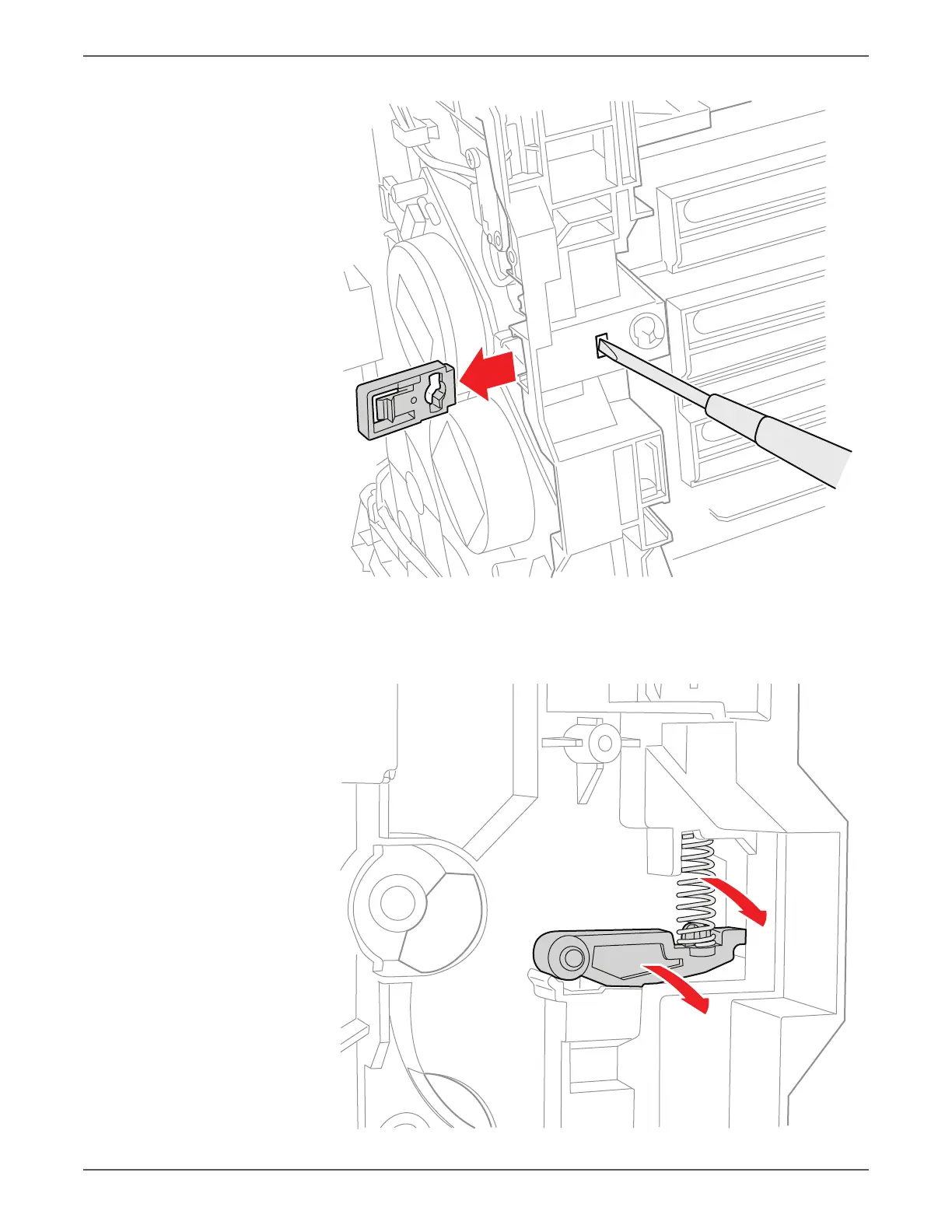

4. Remove the Imaging Unit Restraint Block from the printer.
5. Remove the Imaging Unit Spring from the printer.
6. Rotate the Imaging Unit Lever slightly and remove it from the printer.
s6128mfp-288
s6128mfp-289
