Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 2-21
Theory of Operation

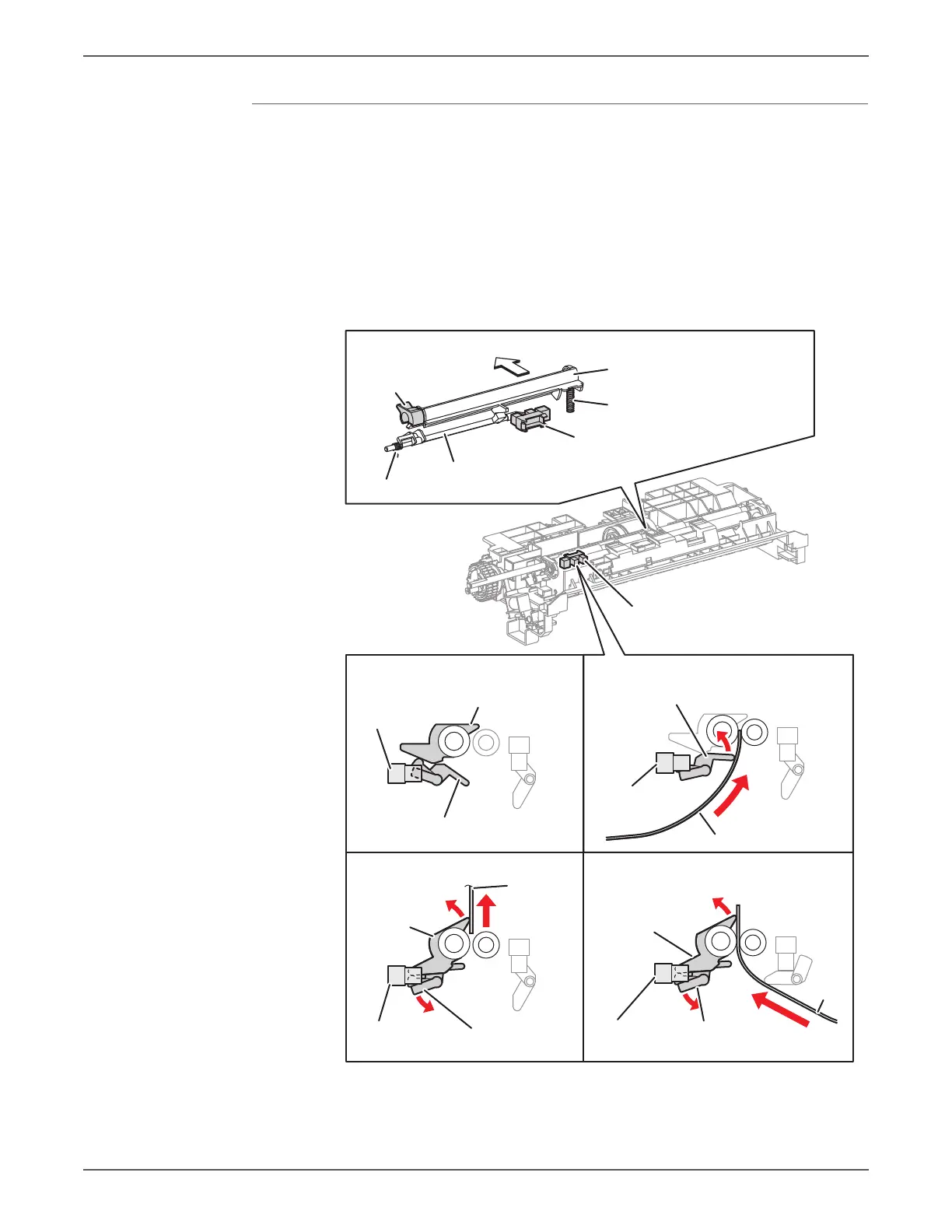

Paper Detection
Since the paper path from manual feed slot to the Registration Sensor is different
than from the Tray to the Registration Sensor, the Registration Sensor is provided
with the Registration In Actuator and the Registration Roller Actuator.
• The Registration Roller Actuator detects the sheet from the manual feed slot
and detects the tail edge of the paper from the Tray.
• The Registration In Actuator detects the lead edge of the paper from the Tray.
The movement of the Registration In Actuator does not affect the Registration
Roller Actuator.
Front
s6128-023
Registration Output Spring
Registration Actuator Spring
Registration Output Actuator
Registration Input Actuator
Registration Input Actuator
Registration
Input Actuator
Registration
Input Actuator
Registration Input Actuator
Registration
Roller Actuator
Registration
Roller Actuator
Normal Position
Paper Detection: Trailing Edge
From Paper Tray
From Manual Sheet Feed
Paper
Paper
Paper
Registration Sensor
Registration Sensor
Registration
Sensor
Registration
Sensor
Registration
Sensor
Rear View
Registration
Sensor
Registration
Roller
Actuator
Registration
Roller
Actuator

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
