Phaser 6128MFP Service Manual 8-97
Service Parts Disassembly

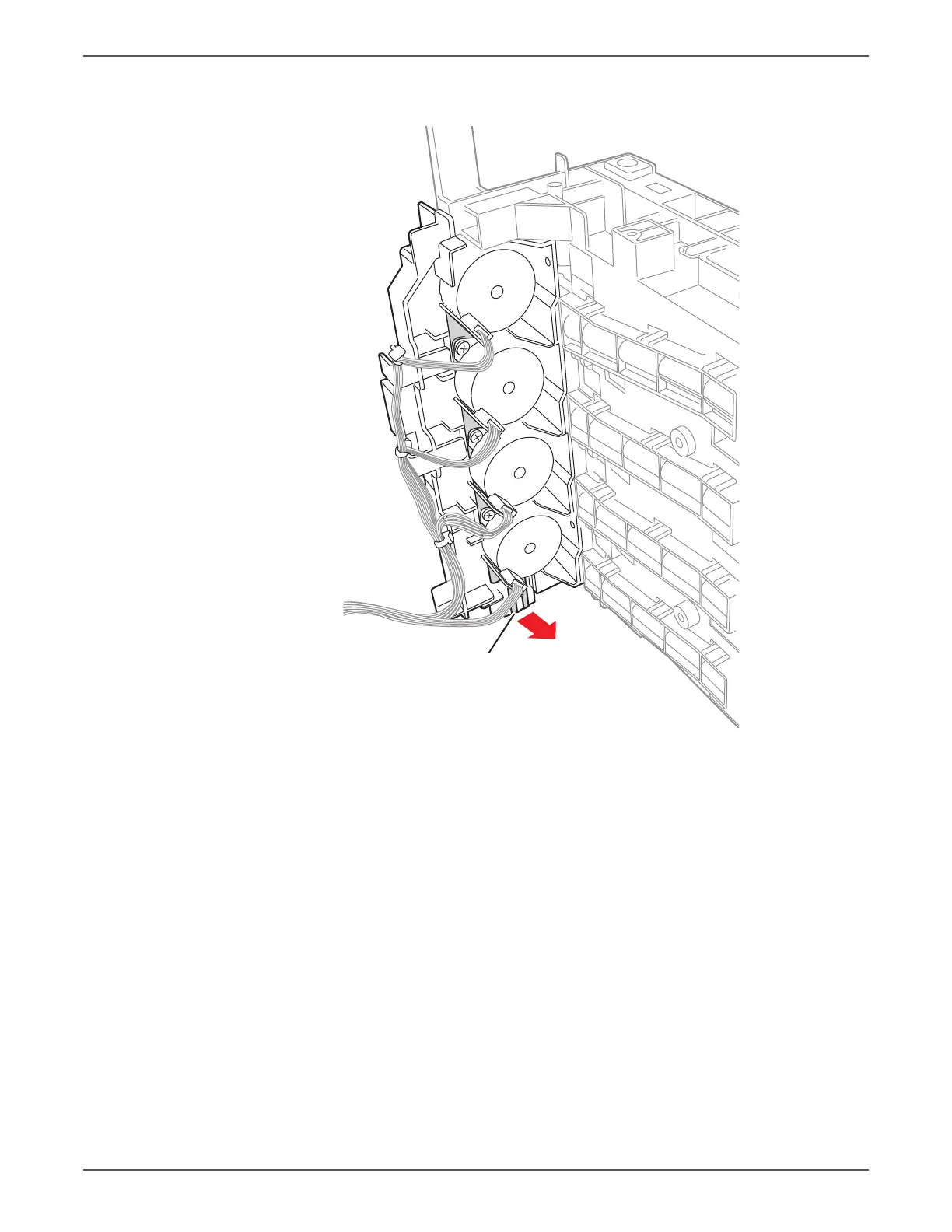

18. Release the Toner Motor Conductor from the hook of the Dispense Assembly.
The Auger drve gears are not captive to the toner motor frame assembly.
19. Seperate the toner motor frame assembly from the Dispense Assembly.
s6128mfp-323
Toner Motor Conductor Hook
