Phaser 6128MFP Service Manual 8-61
Service Parts Disassembly

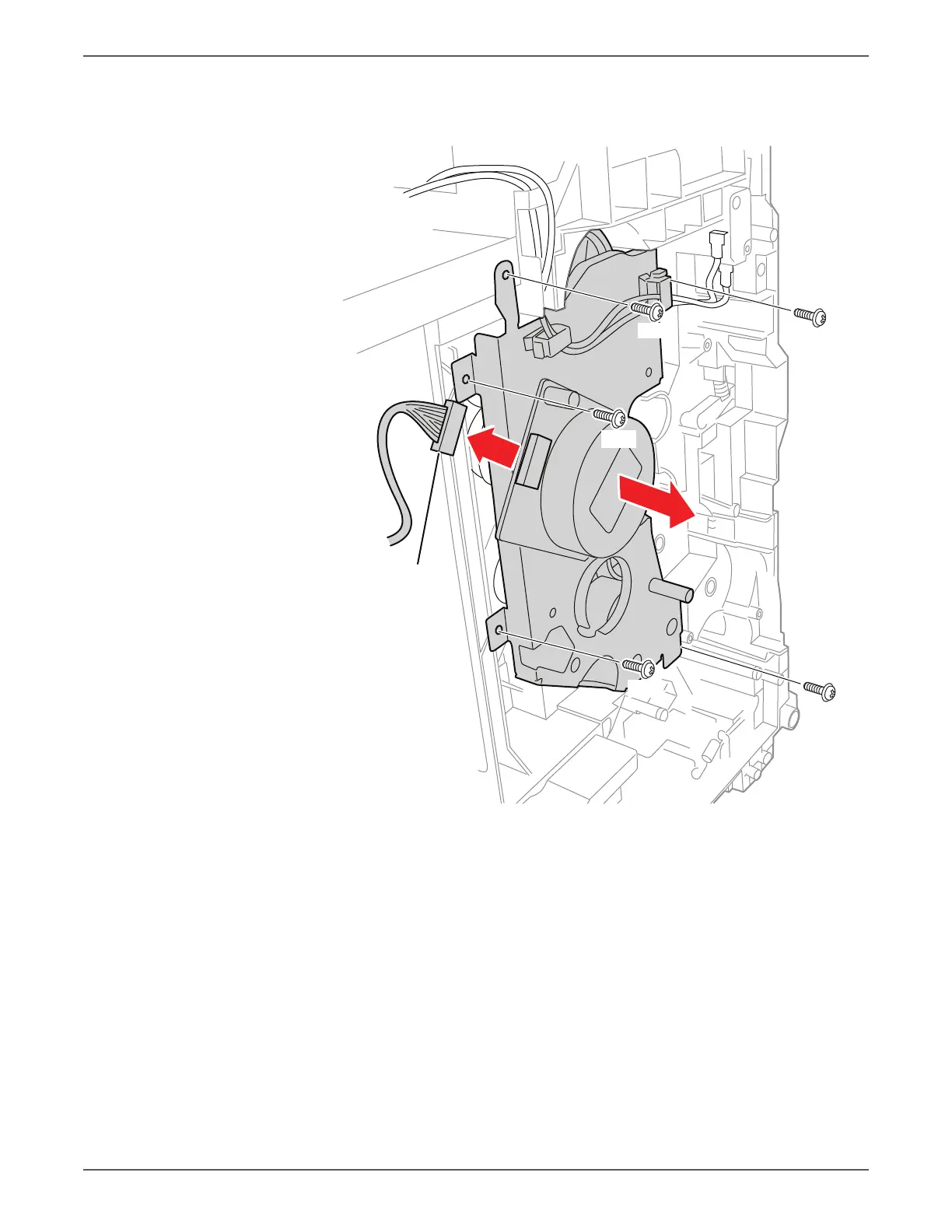

13. Disconnect P/J221 from the Sub-Drive Assembly.
14. Remove the one screw (silver, M4, 6mm) and the four screws (silver, tap, 8mm)
that secure the Sub-Drive Assembly to remove the drive.
P/J221
s6128mfp-231
6mm
8mm
8mm
8mm
8mm
To Next Page
